Interested in the Astor Bannerman Motion G or replacing an existing assisted bath? Send us your details and a member of the Able team will get back to you to discuss your requirements.

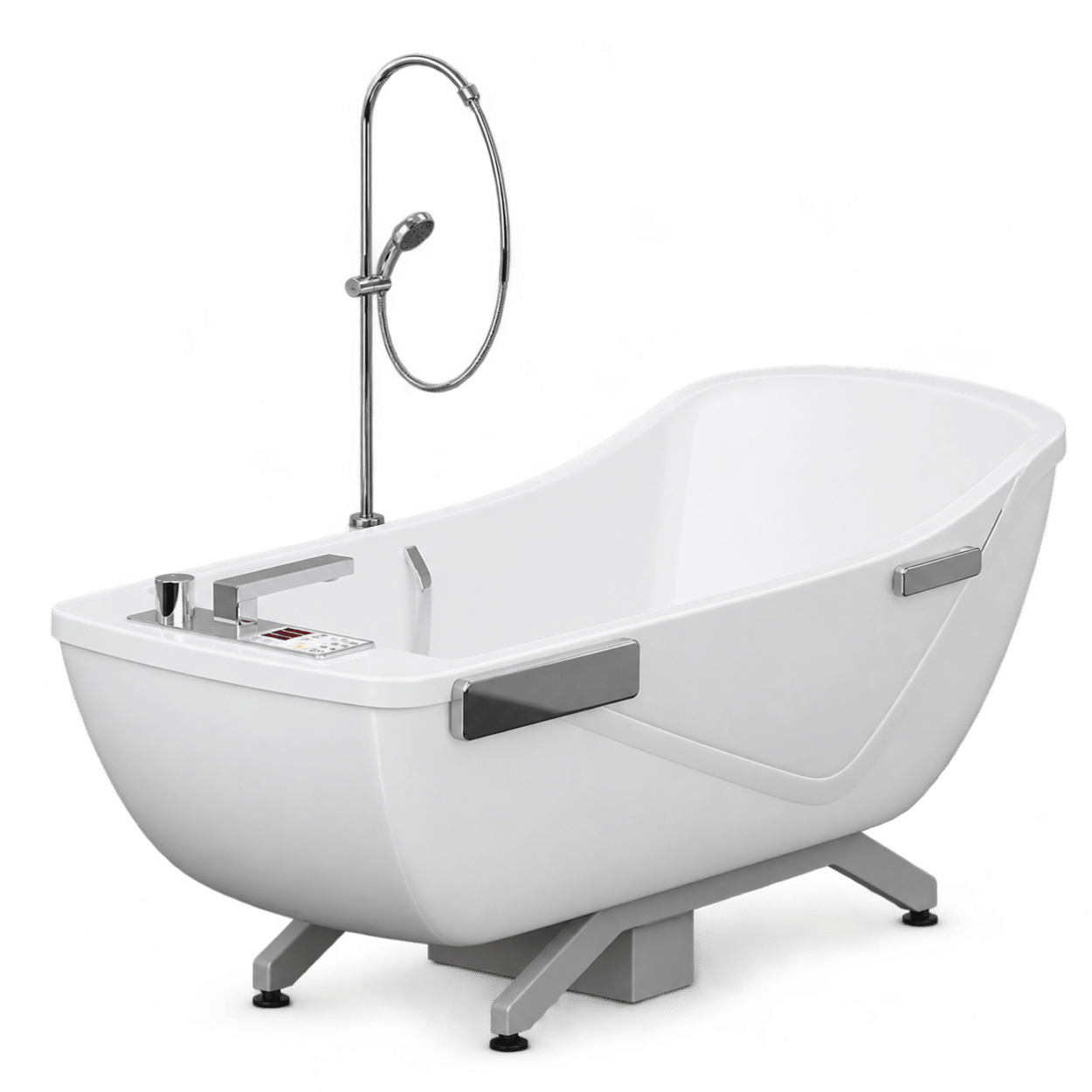

The Astor Bannerman Motion G is a specialist height-adjustable reclining bath designed to make assisted bathing more comfortable and accessible in care homes and nursing environments. Its large side-entry door provides easier access for residents using wheelchairs or compatible hoists, while powered reclining movement supports comfortable positioning and immersion.
Featuring 200 mm powered height adjustment, a 23° reclining tilt and a spacious 98-litre footwell, the Motion G combines practical accessibility with a comfortable bathing experience. Its Showersafe shower gantry, thermostatic temperature controls and optional sensory bathing features make it suitable for a range of professional care requirements.
The electrically operated bath offers 200 mm of height adjustment and a 23° reclining tilt, allowing care staff to position the bather comfortably.
The manual side door creates a wide, low-threshold entry point for suitable wheelchair users, assisted transfers or people able to enter independently.
The spacious footwell can be filled before the bath reclines, helping immerse the bather promptly after entering.
The integrated contoured seat, grab handles and reclining motion help support the bather during positioning and immersion.
The Motion G care-home configuration includes a shower gantry with fluid category 5 backflow protection and TMV3 temperature control.
Available options include a warm-air spa, colour-changing LED lighting and a Bluetooth audio system, subject to final specification.
The Motion G uses a large manual side-entry door rather than a powered traverse seat. Access may be independent or assisted using suitable wheelchairs and hoists, with the bather supported by the moulded internal seat as the bath reclines.
The large side opening supports seated entry from a suitable wheelchair and can make assisted transfers more manageable. Care plans and compatibility still need checking.
Clearance around and beneath the Motion G allows compatible floor hoists, ceiling hoists and handling equipment to approach the bath.
Adjust the bath height for care tasks and then recline through up to 23° for supported immersion, using the pre-filled footwell where appropriate.
Measurements are from Astor Bannerman’s Motion G specification and comparison data. The manufacturer’s 210 kg working-load figure should be checked against the exact product configuration and permitted user load before quoting; another manufacturer brochure describes a different patient/load figure. Confirm installation clearances and site services.
Able can assess room layout, doorway and wheelchair access, hoist approach and the side-entry transfer process to help establish whether the Motion G suits your bathing requirements.
We can support specification, delivery and commissioning, followed by servicing, repairs and breakdown support.
If replacing an existing Motion G or another assisted bath, send us the make and model and we can review practical installation and handling requirements.
Review room dimensions, access, services, existing equipment and practical transfer requirements.
Confirm 1908 × 935 mm dimensions, 200 mm rise and fall, 23° tilt, access and door orientation, shower gantry and transfer compatibility.
Plan delivery, removal where agreed, installation, commissioning and handover.
Keep the bath supported with planned servicing, breakdown assistance, repairs and parts.
Tell us the existing make and model, room dimensions, door access and transfer method. Able can review the replacement arrangement and identify appropriate bathing alternatives.
View the Able-hosted Motion G specification for overall dimensions, height adjustment, reclining angle, access arrangement and supported bathing features.
The exact working-load rating and installation requirements should be checked against the current manufacturer documentation before ordering.
Compare the Motion G with alternative reclining and height-adjustable models from Astor Bannerman.
