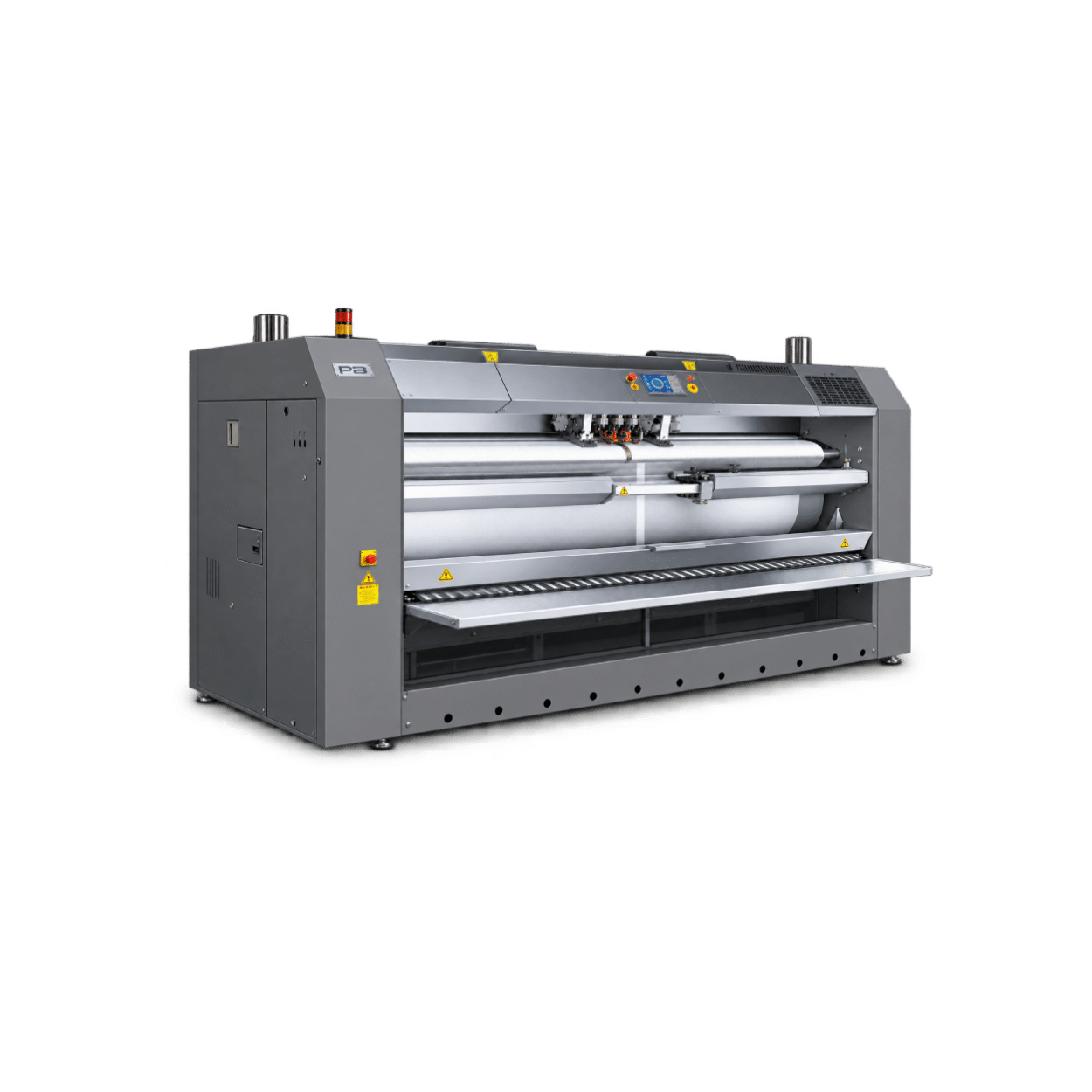

Primus IFF50-320 3.2m industrial flatwork ironer with digital control panel and wide roller system for commercial laundry.

Primus IFF50-320 Commercial Flatwork Drying Ironer

The Primus IFF50-320 is a cylinder-heated commercial flatwork drying ironer with integrated feeding and length folding. Its 3200mm useful roller length and 502mm roller diameter support professional linen finishing, with electric, gas or steam heating versions.

EasyFold and variable folding setups bring ironing and length folding together, with crossfolder and stacker units available as options. Rated output is up to 120kg/hour for electric and gas versions or 145kg/hour for steam under the manufacturer’s test conditions.

Purchase the Primus IFF50-320 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a Primus IFF50-320 Quote
Primus commercial laundry equipment logo

IFF50-320

Key Specifications

3200mm
Working width
502mm
Roller diameter
120kg/h
Output, electric/gas (up to)
1.5–8m/min
Variable roller speed
Electric heating icon

Electric / Gas / Steam
Heating options
Chest heated ironer icon

Cylinder heated
Integrated feeding & length folding
Commercial ironer dimensions icon

1782 × 4050 × 2276mm
H × W × D

Primus IFF50-320 Technical Specifications

Specification Primus IFF50-320
Ironer type Cylinder-heated drying ironer with integrated feeding and length folding
Useful roller length 3200 mm
Roller diameter 502 mm
Output — electric / gas versions Up to 120 kg/hour, ISO 9398-1 test
Output — steam version Up to 145 kg/hour, ISO 9398-1 test
Roller speed 1.5–8 m/min
Heating versions Electric, gas or steam
Electric heating power 65 kW
Gas heating power 66 kW
Steam consumption 88 kg/hour
Roller motor power 1.2 kW
Fan motor power 2 motors; 0.18 / 0.255 kW each
Control configurations listed 7-inch PLC Touch Control; 20-programme microprocessor
PLC interface languages 34
Feeding and length folding Built in
Folding system EasyFold
Anti-static bar Standard
Electrical supply options 380–415V 3AC + N, 50/60Hz; 208–240V 3AC, 50/60Hz
Air compressor Not included
Ironer dimensions (H × W × D) 1782 × 4050 × 2276 mm
Ironer net weight — electric / gas / steam 2360 / 2400 / 2380 kg
Ironer packed dimensions (H × W × D) 1990 × 4190 × 1370 mm
Ironer packed weight — electric / gas / steam 2720 / 2770 / 2750 kg
Crossfolder Optional
Optional crossfolder dimensions (H × W × D) 1010 × 4100 × 870 mm
Optional crossfolder net weight 560 kg
Stacker Optional
Optional stacker dimensions (H × W × D) 1300 × 2754 × 1220 mm
Optional stacker net weight 290 kg

Primus IFF50-320 Controls & Operation

Available control configurations include PLC Touch Control and a 20-programme microprocessor. Integrated feeding and length folding bring key finishing stages together.

PLC Touch Control

7-Inch Programmable Touchscreen

PLC Touch Control provides a fully programmable, customisable 7-inch touchscreen with built-in operating instructions and control content in 34 languages.

Microprocessor Control

20 Pre-Set Ironing Programmes

The microprocessor configuration offers 20 pre-set ironing programmes, with indication of ironing speed and temperature.

Integrated Length Folding

Built-In Feeding & Folding

The IFF50-320 combines feeding and length folding with variable folding setups and EasyFold. Crossfolder and stacker units are optional.

Additional Features & Benefits

The Primus IFF50-320 combines practical operator features with controlled heat, pressure and speed for dependable professional flatwork finishing.

✓
3200mm useful roller length and 502mm cylinder
✓
Built-in feeding and length folding
✓
Variable folding setups
✓
EasyFold system without ribbons and rolls
✓
Over 300° cylinder contact with linen
✓
Durable Meta Aramid ironing belts
✓
Automatic cool-down and reverse operation
✓
Frequency-controlled motor
✓
Standard anti-static bar
✓
Finger protection and emergency button

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Primus IFF50-320 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the IFF50-320 operating reliably throughout its working life.

We can help plan the heating and electrical supplies, compressed air, exhaust arrangements, access and linen flow before installation.

01

Equipment Specification

We can help confirm whether the IFF50-320 matches your flatwork, throughput and site requirements.

02

Delivery & Installation

Able can arrange delivery and support the correct positioning and installation of the ironer at your site.

03

Commissioning & Operator Setup

We can support commissioning and operator guidance, helping your team set ironing speed and temperature for daily use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Primus IFF50-320 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Primus IFF50-320 as a standalone professional cylinder-heated ironer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the IFF50-320 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Primus IFF50-320 Spec Sheet

Primus IFF50-320 flatwork drying ironer with integrated feeding and length folding
PRODUCT TECHNICAL DOCUMENT

Download the Primus IFF50-320 Spec Sheet

View the Primus IFF50 specification sheet for roller dimensions, heating options, control configurations, feeding and folding features, optional equipment and installation dimensions.

The document covers the IFF50-250 and IFF50-320. Use the IFF50-320 column for this model.

Request a Primus IFF50-320 Quote

Tell us about your flat linen, daily throughput and feeding and folding requirements, and we’ll help you assess the Primus IFF50-320 for your laundry.

Ask about heating and control configurations, optional crossfolder or stacker equipment, outright purchase or Able Complete360°, installation and ongoing servicing.

Request a Primus IFF50-320 Quote
