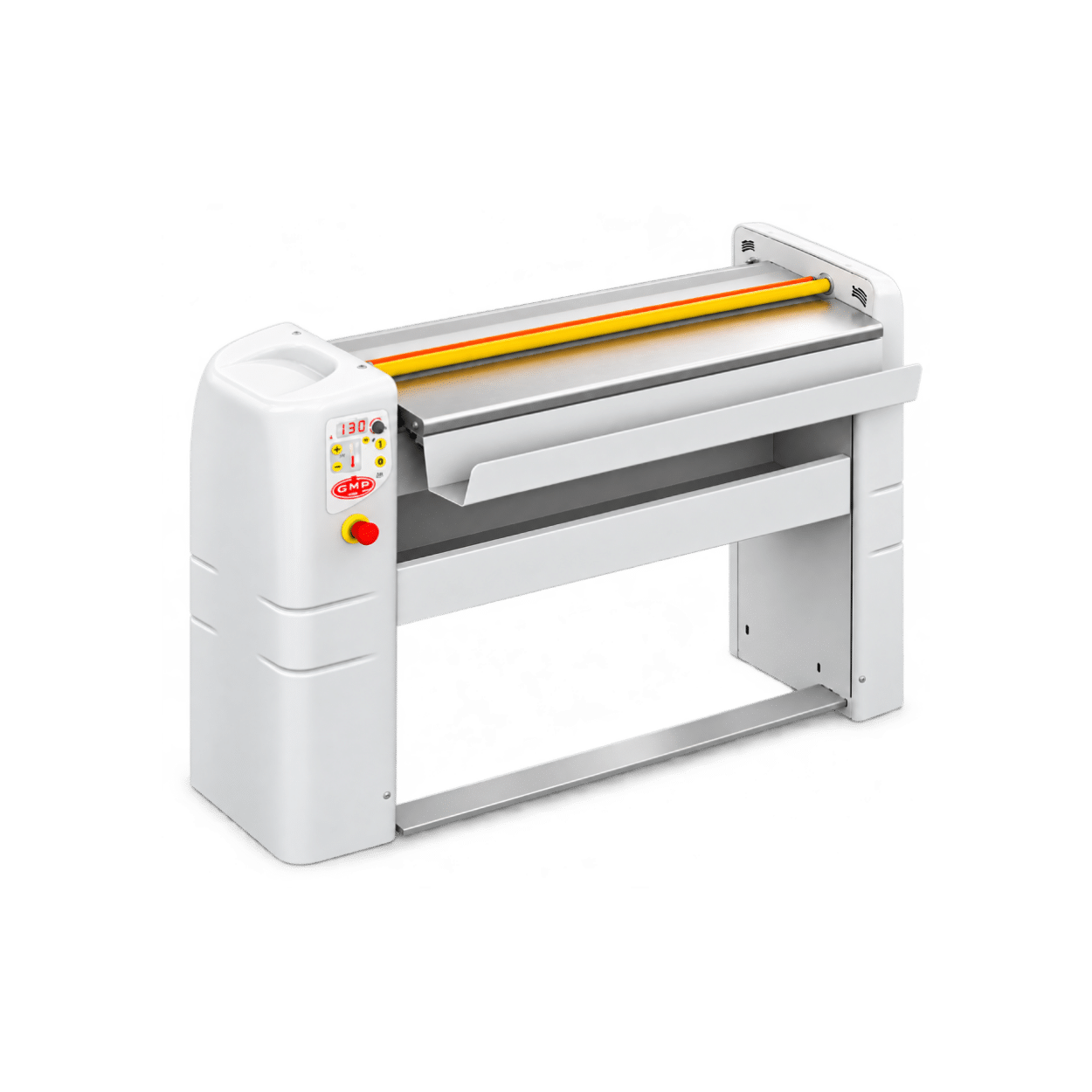

GMP E160.30 1.6m industrial rotary ironer for professional laundry and commercial flatwork finishing.

GMP E160.30 Commercial Rotary Ironer

The GMP E160.30 is an electric commercial rotary ironer with a 1600mm working width, 300mm roller and 11.4kW heating. Designed for pre-dried flat linen, it offers an hourly production of 50kg at 25% residual moisture and variable ironing speeds from 1 to 5m/min.

A hard-chromed steel chest, double temperature sensors and a heat-resistant Meta Aramid roller cover support consistent finishing. Standard moisture extraction, front linen return and a smart foot pedal help simplify daily operation.

Purchase the GMP E160.30 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a GMP E160.30 Quote
GMP commercial laundry equipment logo

E160.30

Key Specifications

1600mm
Working width
300mm
Roller diameter
50kg/h
Hourly production (25% moisture)
1–5m/min
Variable roller speed
Electric heating icon

Electric
Three-phase supply
Chest heated ironer icon

Chest heated
Commercial rotary ironer
Commercial ironer dimensions icon

1100 × 2170 × 592mm
H × W × D

GMP E160.30 Technical Specifications

Specification GMP E160.30
Ironer type Electrically heated chest ironer
Working width 1600 mm
Roller diameter 300 mm
Hourly production 50 kg/hour at 25% residual moisture
Variable ironing speed 1–5 m/min
Heating source Electric
Heating power 11.4 kW
Motor power 1.1 kW
Configurable electrical supply 400V three-phase + neutral, 50Hz standard; 230V three-phase option
Current — 230V three-phase 36.5 A
Current — 400V three-phase 21.5 A
Steam extraction Standard extraction; 75mm connection, 90m³/hour
Chest surface Hard-chromed steel
Temperature monitoring Double temperature sensors
Linen feed and return Front feeding and front return
Recommended maximum linen width 3200 mm; maximum two layers
Dimensions (H × W × D) 1100 × 2170 × 592 mm
Net weight 231 kg
Crated dimensions (H × W × D) 1300 × 2300 × 690 mm
Gross weight 278 kg

GMP E160.30 Controls & Operation

Adjustable ironing speed, double-sensor temperature monitoring and a hands-free roller stop support straightforward flatwork finishing.

Variable Speed

Match the Linen and Moisture

Set the ironing speed between 1 and 5m/min to suit the fabric and its residual moisture, with temperature adjustment from the control panel.

Temperature Control

Double-Sensor Monitoring

Two sensors monitor the ironing surface. Heating is cut off if temperature imbalances or limits are detected.

Smart Foot Pedal

Hands-Free Roller Stop

The foot pedal stops roller rotation, leaving both hands free to position the linen during feeding. A finger guard and emergency stop provide additional safeguards.

Additional Features & Benefits

The GMP E160.30 combines a hard-chromed steel chest, practical operator controls and front linen return for professional finishing of pre-dried flatwork.

✓
1600mm working width and 300mm roller
✓
11.4kW electric heating
✓
Hard-chromed steel ironing chest
✓
Double temperature sensors
✓
Frequency-controlled variable ironing speed
✓
Heat-resistant Meta Aramid roller cover
✓
Front linen feeding and return
✓
Shaped aluminium feeding table
✓
Standard moisture extraction system
✓
Smart foot pedal to stop roller rotation

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the GMP E160.30 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the E160.30 operating reliably throughout its working life.

We can help plan the electrical supply, working clearances, pre-drying process and linen flow before installation.

01

Equipment Specification

We can help confirm whether the E160.30 matches your flatwork, throughput and site requirements.

02

Delivery & Installation

Able can arrange delivery and support the correct positioning and installation of the ironer at your site.

03

Commissioning & Operator Setup

We can support commissioning and operator guidance, helping your team set ironing speed and temperature for daily use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the GMP E160.30 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the GMP E160.30 as a standalone professional chest-heated ironer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the E160.30 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

GMP E160.30 E-line Brochure

GMP E160.30 commercial rotary ironer
PRODUCT TECHNICAL DOCUMENT

Download the GMP E160.30 E-line Brochure

View the GMP E-line brochure for roller dimensions, heating power, configurable electrical supplies, ironing speeds and installation dimensions.

Speak to Able about the electrical supply, pre-drying arrangements and installation for your laundry.

Request a GMP E160.30 Quote

Tell us about your flat linen, daily workload, pre-drying arrangements and available space, and we’ll help you assess the GMP E160.30 for your laundry.

Ask about the electrical supply, outright purchase or Able Complete360°, extraction ducting, installation, operator guidance and ongoing servicing.

Request a GMP E160.30 Quote
