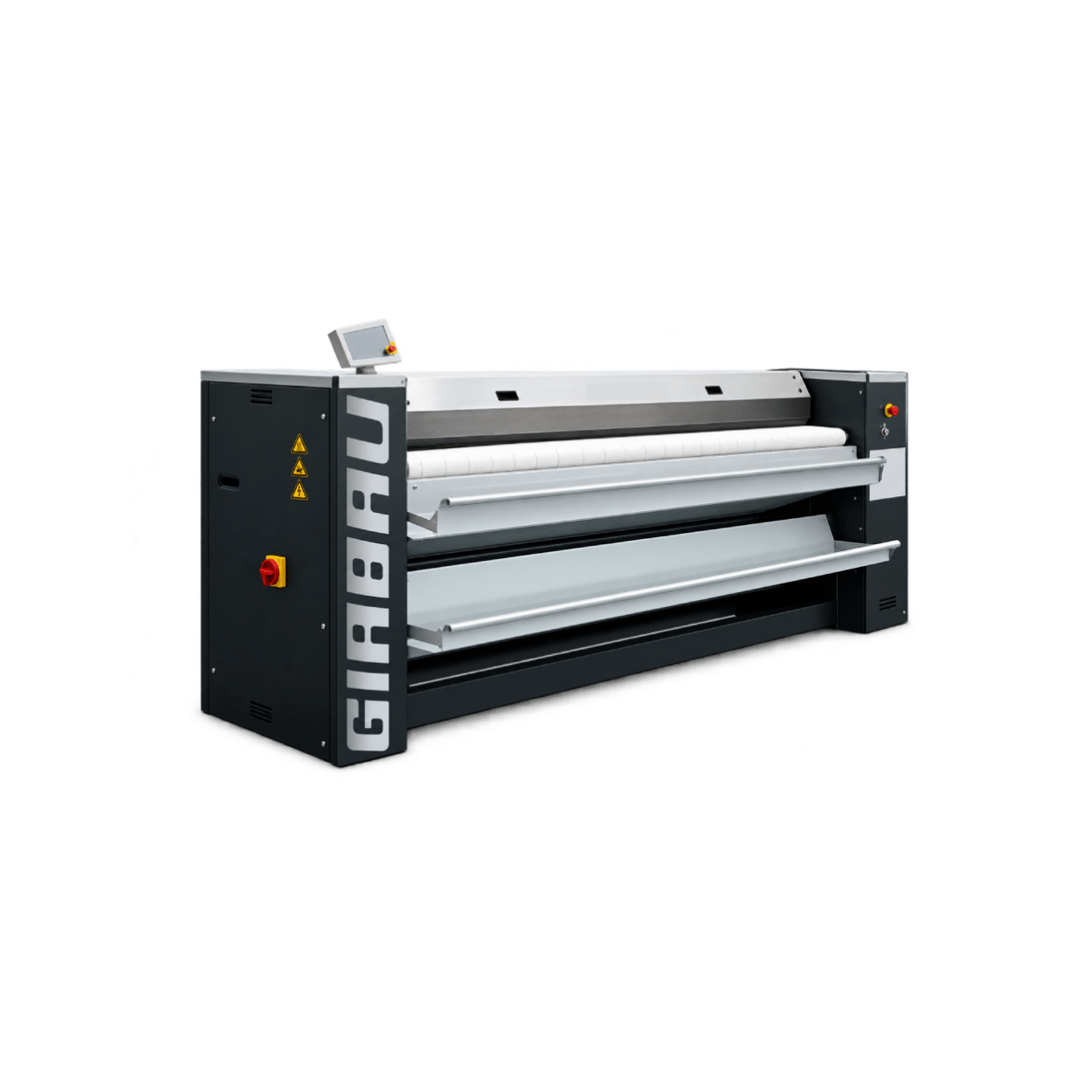

Girbau PB5119 1.9m industrial flatwork drying ironer with roller system and digital controls for professional laundry.

Girbau PB5119 Commercial Flatwork Drying Ironer

The Girbau PB5119 is a commercial flatwork drying ironer with a nominal 1900mm working width, a 510mm nominal roller and a maximum ironing speed of 9m/min. Available with electric, gas or steam heating, it is designed for finishing sheets, table linen and other flatwork in professional laundries.

Care Touch Roll and the Kinematic strap tension system support an even finish, while Inteli concept controls, Autospeed and Optifeed help guide day-to-day operation.

Purchase the Girbau PB5119 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a Girbau PB5119 Quote
Girbau commercial laundry equipment logo

PB5119

Key Specifications

1900mm
Nominal working width
510mm
Nominal roller diameter
2.12m²
Ironing area
9m/min
Maximum ironing speed
Electric heating icon

Electric / Gas / Steam
Heating options
Cylinder-heated ironer icon

Cylinder heated
Flatwork drying ironer
Commercial ironer dimensions icon

1825 × 2986 × 1155mm
H × W × D

Girbau PB5119 Technical Specifications

Specification Girbau PB5119
Ironer type Cylinder-heated flatwork drying ironer
Nominal working width 1900 mm
Nominal roller diameter 510 mm
Ironing area 2.12 m²
Maximum ironing speed 9 m/min
Heating versions Electric, gas or steam
Dimensions (H × W × D) 1825 × 2986 × 1155 mm
Control Inteli concept control
Automatic ironing-speed adjustment Autospeed
Feeding guidance Optifeed
Roll surface Care Touch Roll chrome coating
Linen contact angle 270°
Strap tensioning Kinematic tension system
Handguard Double-sensor monitoring with start-up check

Girbau PB5119 Controls & Operation

Inteli concept control, automatic speed adjustment and feeding guidance help operators maintain a consistent finish.

Inteli Control

Clear Programme Information

Easy-to-understand icons show the programme, actual and programmed temperature, ironing speed and article length.

Autospeed

Moisture-Responsive Speed

Autospeed adjusts ironing speed to suit the linen type and degree of dampness, helping maintain an even ironing temperature.

Optifeed

Temperature-Based Feeding Guidance

The display indicates the hottest feeding area in real time, guiding the operator towards more effective use of the available heat.

Additional Features & Benefits

The Girbau PB5119 combines operator guidance, controlled strap tension and a chrome-coated roll for professional flatwork finishing.

✓
1900mm nominal working width and 510mm nominal roller
✓
Electric, gas or steam heating versions
✓
Care Touch Roll chrome-coated ironing surface
✓
270° linen contact around the roll
✓
Kinematic system maintains even strap tension
✓
Inteli concept control with clear operating information
✓
Autospeed automatic ironing-speed adjustment
✓
Optifeed temperature-based feeding guidance
✓
Handguard with double-sensor monitoring
✓
Gearmotor and inverter drive assembly

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Girbau PB5119 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the PB5119 operating reliably throughout its working life.

We can help plan the selected heating supply, electrical connection, exhaust ducting, working clearances and linen flow before installation.

01

Equipment Specification

We can help confirm whether the PB5119 matches your flatwork, throughput and site requirements.

02

Delivery & Installation

Able can arrange delivery and support the correct positioning and installation of the ironer at your site.

03

Commissioning & Operator Setup

We can support commissioning and operator guidance, helping your team set ironing speed and temperature for daily use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Girbau PB5119 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Girbau PB5119 as a standalone professional cylinder-heated ironer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the PB5119 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Girbau PB5119 Brochure

Girbau PB5119 commercial flatwork drying ironer
PRODUCT TECHNICAL DOCUMENT

Download the Girbau PB5119 Brochure

Explore the Girbau PB Series brochure for Care Touch Roll, the Kinematic tension system, Inteli controls, Autospeed and Optifeed.

Ask Able about specifying the PB5119 for your flat linen, available heating supply and laundry layout.

Request a Girbau PB5119 Quote

Tell us about the flat linen you need to finish, your daily workload and the space available, and we’ll help you assess the Girbau PB5119 for your laundry.

Ask about electric, gas or steam heating, outright purchase or Able Complete360°, installation, exhaust ducting and ongoing servicing.
