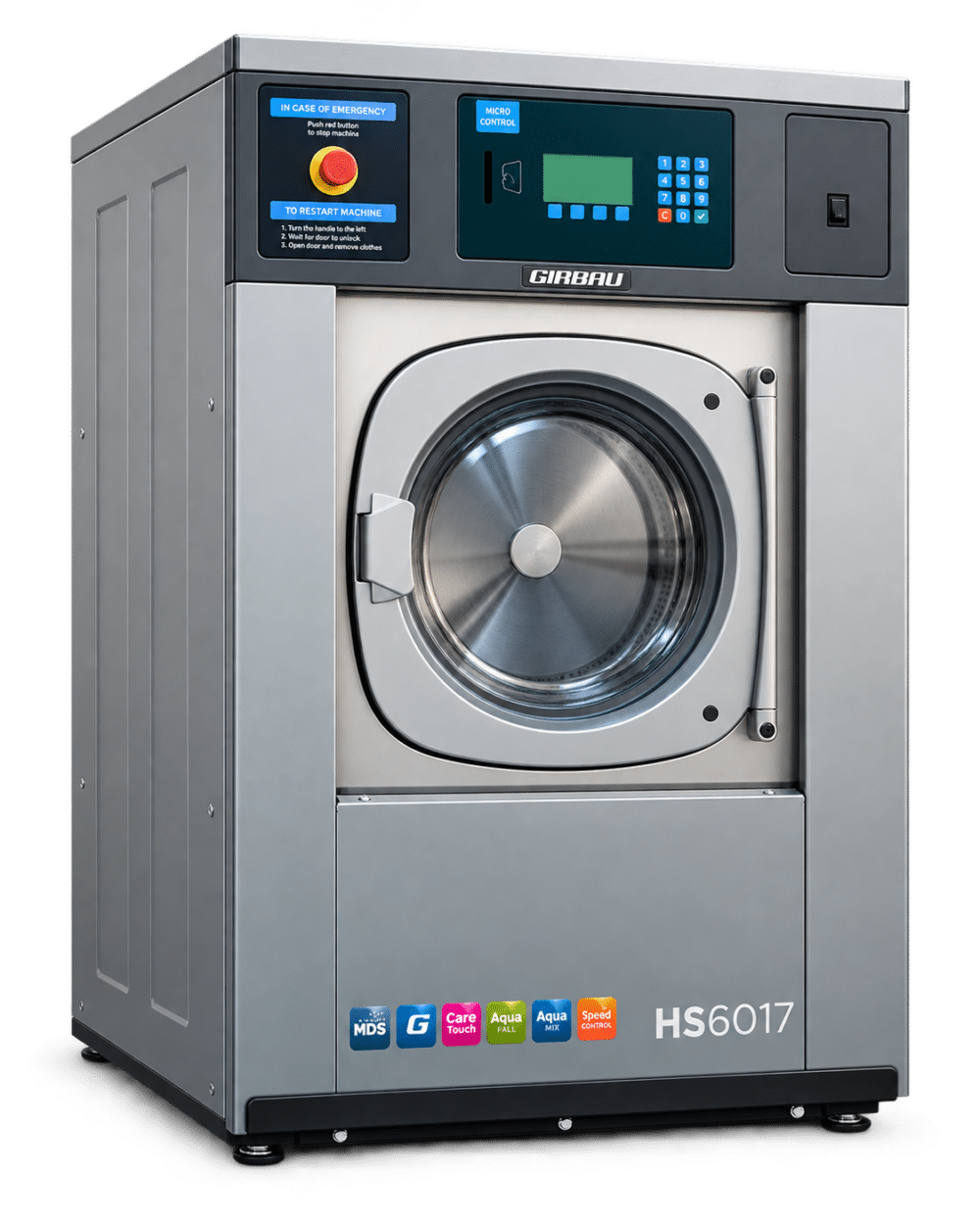

Girbau HS6017 Commercial Washing Machine

The Girbau HS6017 is a 17kg softmount commercial washer extractor designed for reliable day-to-day use in care homes, hospitality, healthcare and other professional laundries. Its 173-litre drum, maximum 950rpm spin speed and 354G extraction help remove moisture efficiently and reduce onward drying time.

AquaFall water recirculation and AquaMixer temperature control support effective washing with efficient use of water and energy. Flexible Logi, Inteli, Coin and Profit Plus control options allow the machine to be configured for on-premise or vended laundry operation, while its 1404 × 868 × 962mm footprint supports compact installations.

Buy the Girbau HS6017 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a Girbau HS6017 Quote
Girbau commercial laundry equipment logo

HS6017

Key Specifications

17kg
Capacity at 1:10
Commercial washing machine capacity icon
173L
Drum volume
Commercial washing machine drum volume icon
950rpm
Maximum extraction speed
Commercial washing machine extraction speed icon
354G
Extraction force
Commercial laundry G-force icon

Electric / Steam / Hot Water
Heating / supply options

Softmount
Multi Directional Spring suspension

1404 × 868 × 962mm
H × W × D

Why Choose the Girbau HS6017?

354G High-Speed Extraction

The HS6017 reaches 950rpm and 354G extraction, helping reduce retained moisture before onward drying.

Flexible Control Options

The HS6017 supports Logi, Inteli, Coin or Profit Plus controls, covering both on-premise and vended laundry applications.

Care Touch Drum

The drum is made from AISI-304L stainless steel, with Girbau’s Care Touch Drum design helping protect linen during washing and extraction.

Softmount Installation

Girbau’s Multi Directional Spring suspension absorbs vibration and noise so floor anchoring is not required.

AquaFall & AquaMixer

AquaFall water recirculation and AquaMixer hot/cold water mixing support effective washing at low water levels while helping manage cycle time and energy use.

Flexible Dosing

The HS6017 provides 4 external dosing signals as standard with 8 more optional, alongside four internal dosing compartments.

Girbau HS6017 Technical Specifications

Specification Girbau HS6017
Capacity at 1:10 17 kg / 38.1 lb
Capacity at 1:9 19 kg / 42.3 lb
Drum volume 173 litres
Drum diameter 700 mm
Drum depth 450 mm
Wash speed — Logi / Coin 44 rpm
Wash speed — Inteli 17-44 rpm
Positioning speed 100 rpm
Maximum extraction speed 950 rpm
G-Factor 354 G
Wash motor power 0.6 kW
Spin motor power 1.3 kW
Electric heating — single phase 6 or 10 kW
Electric heating — three phase 9 or 15 kW
Heating alternatives Electric / steam / external hot-water feed
Control options Logi / Inteli / Coin / Profit Plus
Internal dosing 4 compartments
External dosing 4 signals + 8 optional
Dosing position Top
Drainage 76 mm gravity
Optional second drainage Available with Inteli
Optional third water inlet Available with Inteli
Door opening 426 mm
Floor to door 515 mm
Dimensions (H × W × D) 1404 × 868 × 962 mm
Net weight 476 kg
Crated weight 500 kg
Crated dimensions (H × W × D) 1565 × 897 × 1017 mm
Front stainless-steel panel Optional
All-stainless construction Optional
Pedestal options Basic / Heavy / Heavy Low
Noise level < 70 dB

Girbau HS6017 Programmes & Controls

The Girbau HS6017 offers both on-premise and vended control options, supported by Girbau wash technologies and configurable dosing integration.

Logi / Inteli

OPL Programme Control

Logi provides straightforward configurable operation, while Inteli adds advanced programme control, Smart Load functions and broader dosing integration.

Coin / Profit Plus

Vended Laundry Controls

Coin and Profit Plus variants add payment-oriented programme control for self-service and vended laundry applications.

AquaFall & AquaMixer

Wash Efficiency Technologies

AquaFall recirculates water through the drum while AquaMixer blends hot and cold water to reach the programmed temperature efficiently.

Control and machine configuration can vary. Able can help confirm the appropriate HS6017 setup for your laundry requirements.

Additional Features & Options

The Girbau HS6017 combines professional 17kg capacity with efficient wash technology and flexible control options.

✓
AISI-304L stainless-steel Care Touch Drum
✓
AquaFall water recirculation
✓
AquaMixer hot/cold water mixing
✓
Multi Directional Spring softmount suspension
✓
No floor anchoring required
✓
Four internal dosing compartments
✓
Four external dosing signals plus eight optional with Inteli
✓
Logi / Inteli / Coin / Profit Plus control options
✓
Electric, steam or external hot-water-feed configurations
✓
76 mm gravity drain
✓
Optional second drain and third water inlet with Inteli
✓
Optional front-stainless or all-stainless construction

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate HS6017 specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Able can support your laundry from initial HS6017 equipment specification through delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the machine operating reliably throughout its working life.

We can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate HS6017 configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support installation and commissioning at your site.

03

Commissioning & Auto Dosing

We can help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available for your commercial laundry equipment.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Girbau HS6017 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Girbau HS6017 as a standalone commercial washing machine, with Able available to support specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

The HS6017 can form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Girbau HS6017 Spec Sheet

Girbau HS6017 commercial washing machine
MANUFACTURER TECHNICAL DOCUMENT

View the Girbau HS6017 Spec Sheet

View the Girbau technical sheet hosted by Able for detailed HS6017 specifications, dimensions, control options and product features.

The manufacturer brochure also includes reference information for the wider Girbau HS commercial washer range.

Request a Girbau HS6017 Quote

Tell us what you’re looking for and we’ll help confirm whether the Girbau HS6017 is the right commercial washing machine for your laundry.

Whether you’re ready to purchase the HS6017, considering Able Complete360°, or simply want to check the specification against your laundry requirements, give our team the basics and we’ll take it from there.

Request a Girbau HS6017 Quote
