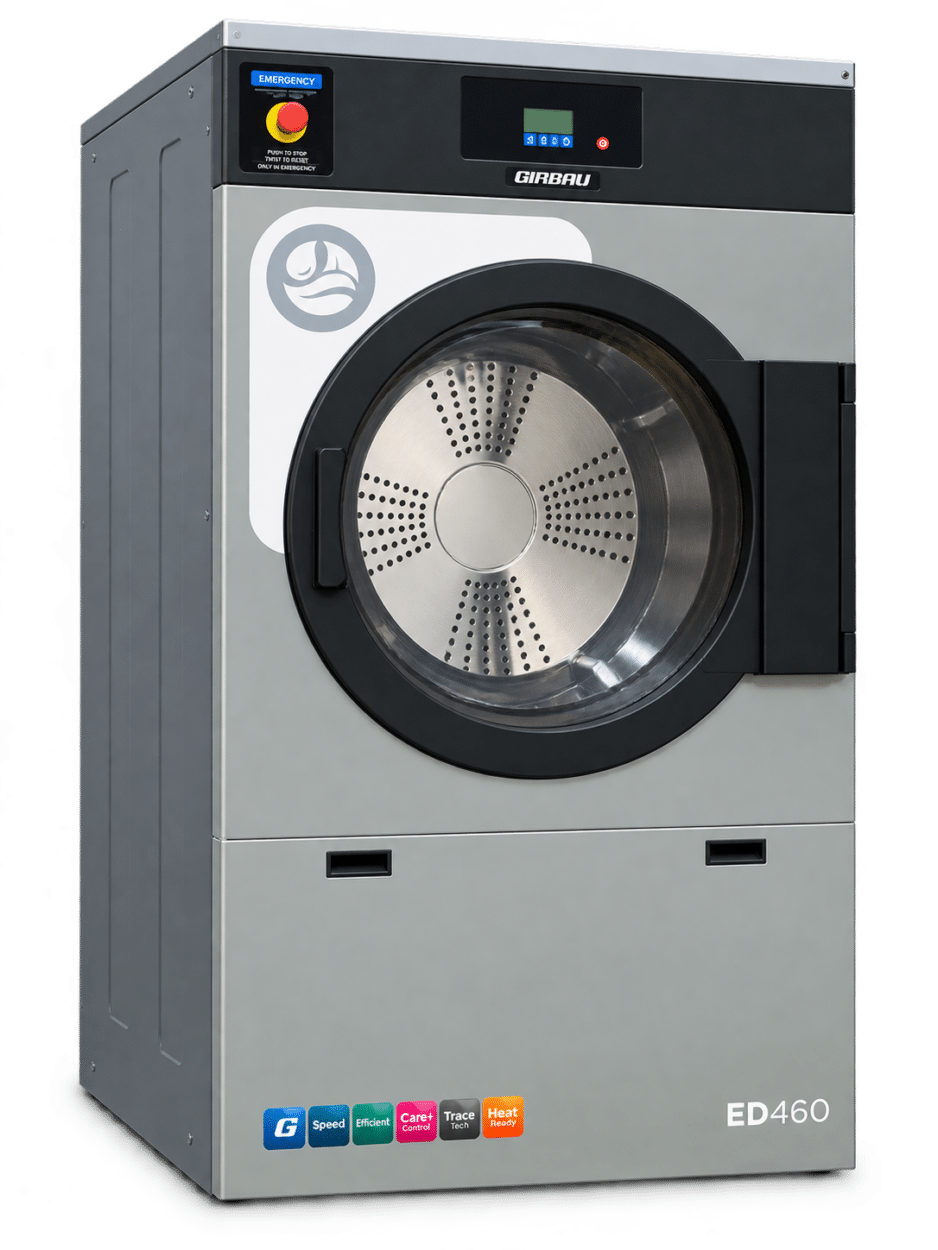

Girbau ED460 Commercial Tumble Dryer

The Girbau ED460 is a 23kg vented commercial tumble dryer at a 1:20 loading ratio, with a 460-litre drum and 1363m³/hour airflow. Its combined radial and axial airflow, adaptable drum action and temperature controls support drying for a range of professional laundry loads.

Separate gas, electric or steam-heated versions are available. Inteli controls provide flexible programme settings, while thermal insulation, a double-glazed door and accessible lint filtration support practical daily operation. Able can help confirm the selected controls, drum configuration, utility supplies and installation requirements.

Purchase the Girbau ED460 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a Girbau ED460 Quote

Girbau Commercial Laundry Equipment

ED460

Key Specifications

23kg
Drying capacity (1:20)
Commercial laundry machine capacity icon

460L
Drum volume
Commercial laundry machine drum volume icon

1363 m³/h
Airflow
Commercial tumble dryer airflow icon

200mm
Exhaust connection
Dryer exhaust connection icon

Gas / Electric heating options icon

Gas / Electric / Steam
Alternative heating versions

Freestanding tumble dryer icon

Freestanding
Commercial tumble dryer

Commercial laundry machine dimensions icon

1828 × 1002 × 1056mm
H × W × D

Girbau ED460 Technical Specifications

Model Girbau ED460
Drying capacity — loading ratio 1:20 23 kg
Drying capacity — loading ratio 1:25 18.4 kg
Drum volume 460 litres
Drum diameter 940 mm
Dryer type Vented tumble dryer
Heating options Gas / electric / steam
Airflow 1363 m³/hour
Exhaust connection 200 mm
Gas heating input 30.996 kW
Gas connection ½-inch BSPP
Natural gas pressure 20 mbar
Propane gas pressure 37 mbar
Electric heating power 24.6 kW
Electric version total input 26.2 kW
Reduced-electric version total input 19.6 kW
Steam heating power 41.8 kW
Steam inlet / outlet connections ¾-inch / ½-inch
Nominal / maximum steam pressure 8 / 9 bar
Steam consumption 74 kg/hour
Drum motor power 0.8 kW
Fan motor power 0.65 kW
Sound level Below 64 dB(A)
Dimensions (H × W × D) 1828 × 1002 × 1056 mm
Net weight 339 kg
Crated dimensions (H × W × D) 1985 × 1030 × 1163 mm
Gross weight 361 kg

The 23kg capacity uses a 1:20 loading ratio; capacity at 1:25 is 18.4kg. Gas, electric and steam heating are separate versions. Able can confirm the selected configuration, electrical supply, utility connections and installation clearances before ordering.

Girbau ED460 Control Options

Girbau Inteli controls support adaptable drying programmes, with professional and vended configurations available. Sapphire connectivity can be specified with the appropriate connection equipment.

Inteli Control icon

Inteli Control

Professional Drying Programmes

Configure multi-phase programmes and adjust temperature, time and drum action to suit the laundry load. The range supports up to 50 programmes, including preset and user-defined options.

Sapphire Connectivity icon

Sapphire Connectivity

Optional Remote Management

Sapphire remote laundry management is available with the appropriate Connectivity Box and configuration. Able can confirm the equipment and setup required.

Vended Configuration icon

Vended Configuration

Optional Payment Setup

Coin-box and central-payment configurations are available for self-service sites, with selectable temperature programmes and timed drying.

Control features and connection equipment depend on the selected configuration. Able can help confirm the appropriate setup for your laundry.

Additional Features & Options

The Girbau ED460 combines adaptable drying controls, fabric-care features and practical maintenance access for professional laundry operation.

✓

Combined radial and axial airflow
✓

Inverter-controlled drum movement
✓

Temperature sensing before and after the drum
✓

Stainless-steel drum configuration
✓

Thermal insulation and double-glazed door
✓

Door opening direction adjustable on site
✓

Large-capacity removable lint filter
✓

Drum support without bearing wheels
✓

Anti-wrinkle action after the cycle
✓

Residual-moisture control configuration
✓

Optional AFS fire-suppression system
✓

Optional Sapphire connection equipment

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate ED460 specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Girbau ED460 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the ED460 operating reliably throughout its working life.

We can also help confirm the appropriate heating configuration, exhaust requirements and installation services for your site before the dryer is commissioned.

01

Equipment Specification

We can help confirm the appropriate ED460 configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the ED460 at your site.

03

Commissioning & Operator Setup

We can support commissioning, control setup and operator guidance, helping ensure the dryer is ready for dependable day-to-day use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Girbau ED460 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Girbau ED460 as a standalone commercial tumble dryer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the ED460 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Girbau ED Series Brochure

Girbau ED460 commercial tumble dryer
GIRBAU PRODUCT BROCHURE

View Girbau ED Series Brochure

View Girbau’s ED and EDD series brochure for drying technology, controls, fabric-care features and available equipment configurations.

Request a Girbau ED460 Quote

Tell us about your laundry, typical loads and available space, and we’ll help confirm whether the Girbau ED460 is the right commercial tumble dryer for your site.

Whether you’re considering outright purchase or Able Complete360°, or need to check heating, controls and installation requirements, give our team the basics and we’ll take it from there.

Request a Girbau ED460 Quote
