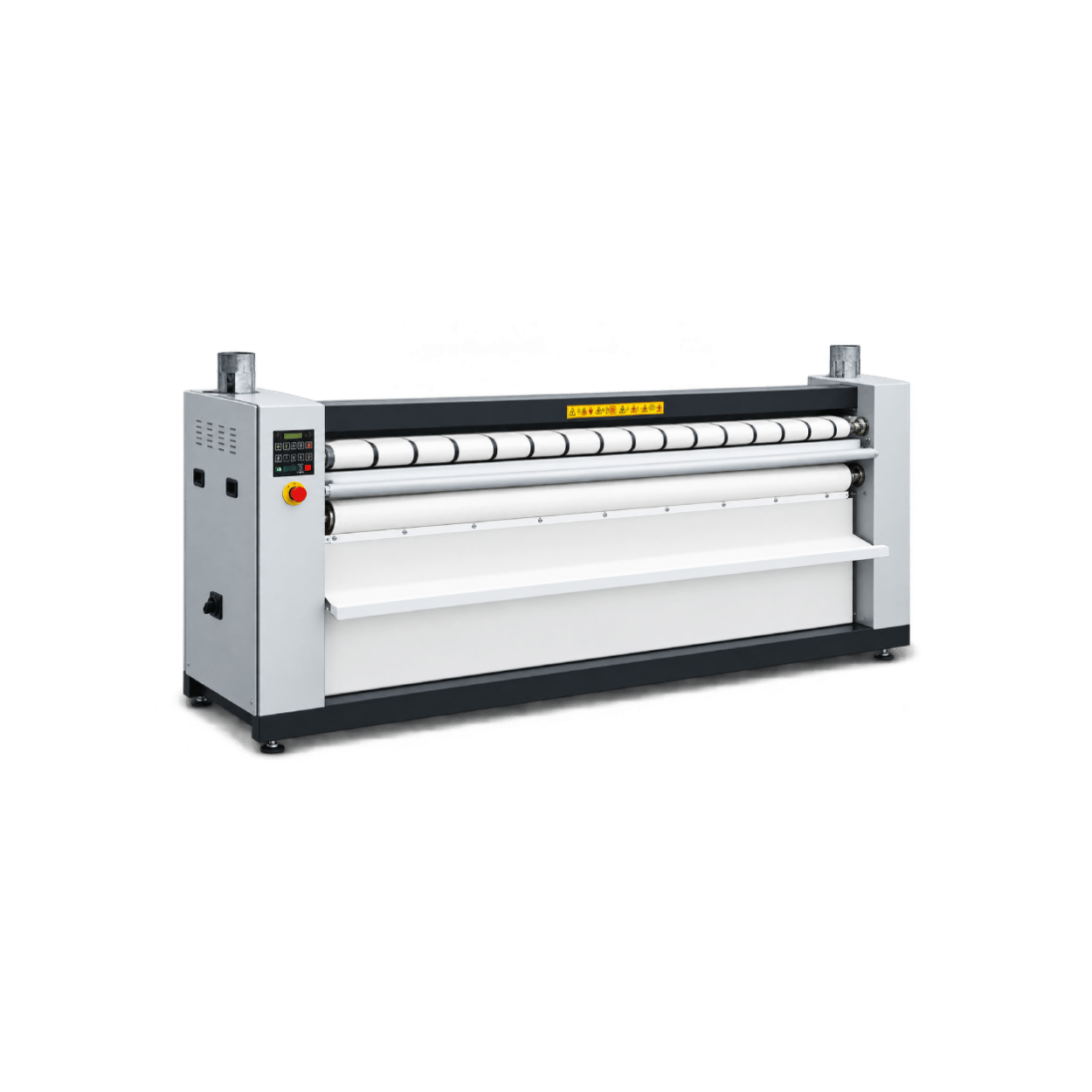

Fagor PS65330 3.3m industrial flatwork ironer for commercial laundries and large-scale linen finishing.

Fagor PS65/330 Commercial Flatwork Drying Ironer

The Fagor PS65/330 is a commercial flatwork drying ironer with a 3300mm working width and 650mm roller. Available with electric, radiant gas or steam heating, it offers theoretical production of 104–160kg/hour, rising to 124–192kg/hour with radiant gas heating.

Touch Plus TP2 controls provide a programmable 7-inch touchscreen with five preset programmes. SMART SYSTEM moisture control and HPS speed adjustment are standard, with operating speeds of 1–15m/min. Front linen feeding and return, Nomex belts and automatic cooling support daily finishing, while a lengthwise folder, rear exit and chrome-plated roller are optional.

Purchase the Fagor PS65/330 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request a Fagor PS65/330 Quote
Fagor commercial laundry equipment logo

PS65/330

Key Specifications

3300mm
Working width
650mm
Roller diameter
104–160kg/h
Rated production
1–15m/min
Variable roller speed
Electric heating icon

Electric / Radiant Gas / Steam
Heating options
Wall flatwork ironer icon

Wall ironer
Flatwork drying ironer
Commercial ironer dimensions icon

1420 × 4145 × 1070mm
H × W × D

Fagor PS65/330 Technical Specifications

Specification Fagor PS65/330
Ironer type Wall flatwork drying ironer
Model designation PS65/330 TP2
Working width 3300 mm
Roller diameter 650 mm
Standard ironing speed 1–15 m/min
Theoretical production 104–160 kg/hour
Theoretical production — radiant gas 124–192 kg/hour
Production test conditions Manufacturer specifies 45–25% moisture
Evaporation capacity 73–110 kg/hour
Heating versions Electric, radiant gas or steam
Electric heating power 72 kW
Total electrical power — electric version 73.05 kW
Gas heating power 78 kW
Total electrical power — gas version 1.05 kW
Steam heating power 97 kW
Total electrical power — steam version 1.05 kW
Electrical supply options 400V three-phase + neutral; 230V three-phase listed for gas/steam versions only
Gas inlet 1/2 inch BSP
Steam inlet 3/4 inch BSP
Condensate outlet — steam version 1/2 inch BSP
Exhaust connection 2 × 153 mm
Airflow 1200 m³/hour
Feeding-belt height 1120 mm
Controls TP2 programmable 7-inch touchscreen
Preset programmes 5; additional programmes can be created
USB connection Included
Cooling function Automatic shutdown at 80°C
Roller finish Polished steel; chrome plating optional
Feeding and ironing belts Nomex
Linen feed and return Front; optional folder and rear exit
Outer panels Stainless steel and grey skinplate
SMART SYSTEM moisture control Standard
HPS speed adjustment Standard; up to 15 m/min
Lengthwise folder Optional
Crossfolder with stacker Optional
Net weight 1765 kg
Reverse roller operation Standard
Dimensions (H × W × D) 1420 × 4145 × 1070 mm

Fagor PS65/330 Controls & Operation

TP2 touchscreen controls work with standard SMART SYSTEM moisture control, HPS speed adjustment and automatic cooling.

Touch Plus TP2

Programmable 7-inch Touchscreen

TP2 provides five preset programmes and the ability to create additional programmes. USB connectivity supports programming, traceability and data analysis.

SMART SYSTEM

Standard Moisture Control

SMART SYSTEM automatically regulates ironing speed according to residual moisture in the linen. It is included as standard on the PS65 range.

Automatic Cooling

Shutdown at 80°C

The built-in cooling system provides automatic shutdown at 80°C at the end of operation.

Additional Features & Benefits

The Fagor PS65/330 combines a 650mm roller with front linen handling, standard moisture-responsive speed control and optional finishing equipment.

✓
3300mm working width and 650mm roller
✓
Electric, radiant gas or steam heating
✓
Polished steel roller; chrome plating optional
✓
Nomex feeding and ironing belts
✓
Stainless steel and grey skinplate panels
✓
Standard reverse roller operation
✓
Optional lengthwise folder and rear exit
✓
Standard HPS speed adjustment up to 15m/min

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Fagor PS65/330 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the PS65/330 operating reliably throughout its working life.

We can help plan the selected heating supply, electrical connection, extraction, working clearances and linen flow before installation.

01

Equipment Specification

We can help confirm whether the PS65/330 matches your flatwork, throughput and site requirements.

02

Delivery & Installation

Able can arrange delivery and support the correct positioning and installation of the ironer at your site.

03

Commissioning & Operator Setup

We can support commissioning and operator guidance, helping your team set ironing speed and temperature for daily use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Fagor PS65/330 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Fagor PS65/330 as a standalone professional flatwork drying ironer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the PS65/330 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Fagor PS65/330 Spec Sheet

Fagor PS65/330 commercial flatwork drying ironer
PRODUCT TECHNICAL DOCUMENT

Download the Fagor PS65/330 Spec Sheet

View Fagor’s PS50/PS65 TP2 specification sheet for technical data, heating versions, touchscreen controls and available options.

Speak to Able about the heating supply, extraction, optional finishing equipment and installation requirements for your laundry.

Request a Fagor PS65/330 Quote

Tell us about your flat linen, daily workload, incoming moisture and available space, and we’ll help you assess the Fagor PS65/330 for your laundry.

Ask about electric, radiant gas or steam heating, optional folding equipment, outright purchase or Able Complete360°, extraction, installation and ongoing servicing.
