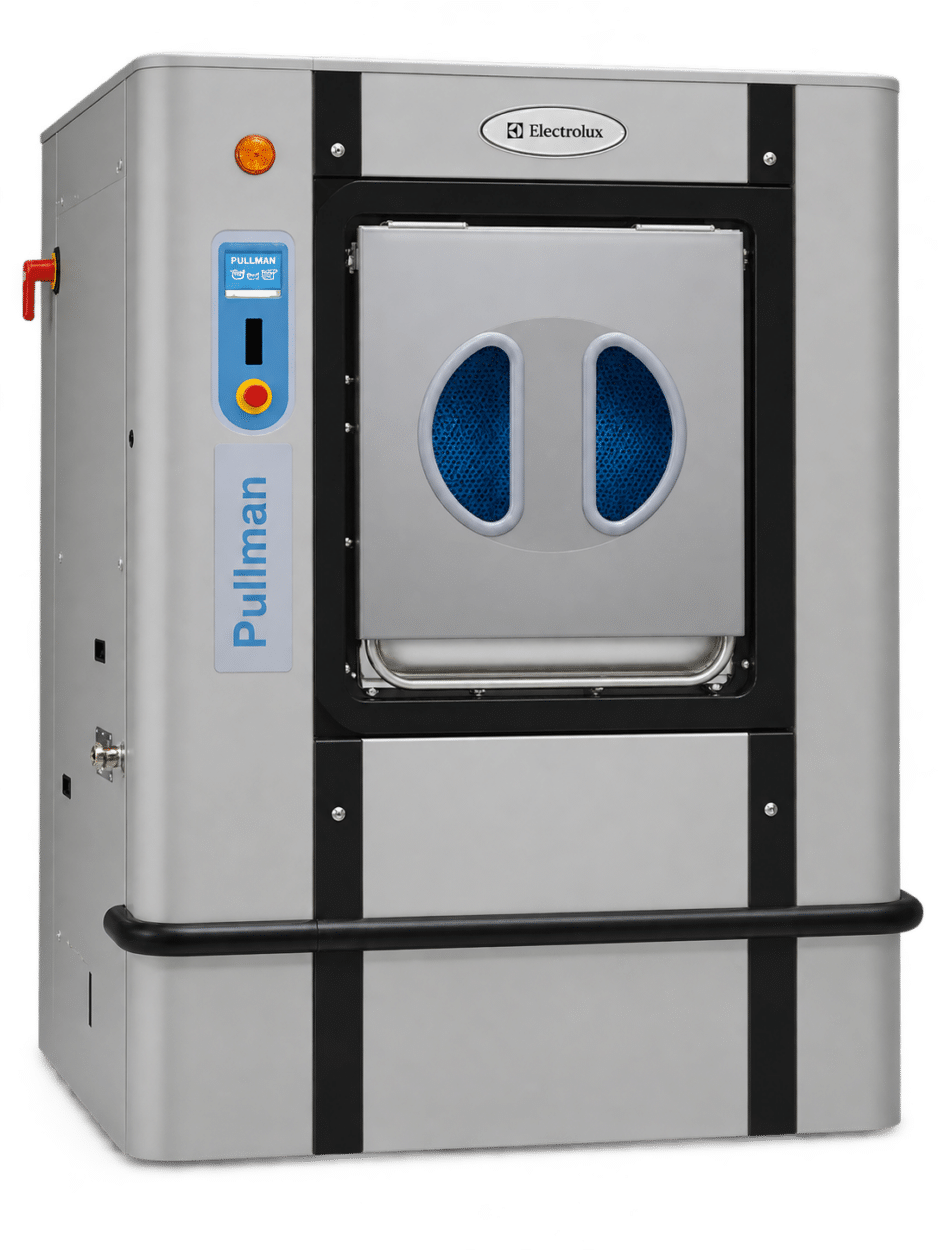

Electrolux WPB4700H 70kg aseptic barrier washing machine

Electrolux Professional WPB4700H Aseptic Barrier Washer

The Electrolux Professional WPB4700H is a 70kg high-spin Pullman barrier washer for high-volume healthcare and hygiene-critical laundries. Its 690-litre two-compartment drum, 720rpm extraction and 300G force combine throughput with controlled separation between soiled and clean processing areas.

Automatic drum positioning, automatic outer-door locking, gravity unloading and pneumatic suspension support safe, efficient operation. Clarus TS controls provide an industrial colour touchscreen, smart-card support, Electrolux pull-down menus and a choice of 14 languages.

Buy the Electrolux Professional WPB4700H outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux WPB4700H Quote

Electrolux Professional commercial laundry equipment logo

WPB4700H

Key Specifications

70kg
Rated capacity
Commercial washing machine capacity icon

690L
Drum volume
Commercial washing machine drum volume icon

720rpm
Extraction speed
Commercial washing machine extraction speed icon

300G
Extraction force
Commercial laundry G-force icon

Electric / Steam
Heating options

Barrier
Pullman barrier washer

2040×1496×1363mm
H × W × D

Why Choose the Electrolux Professional WPB4700H?

300G High-Speed Extraction

The WPB4700H reaches 720rpm and 300G extraction, helping reduce retained moisture and onward drying time.

Pass-Through Barrier Design

Separate loading and unloading sides create a physical division between soiled and clean areas for controlled hygiene workflows.

Automatic Drum Control

Automatic positioning aligns the two-compartment Pullman drum for efficient loading and unloading.

Clarus TS Controls

An industrial eight-colour touchscreen provides intuitive programming, smart-card support and 14 language options.

Pneumatic Suspension

Electrolux Professional Pneumatic Suspension monitors imbalance and supports stable, high-speed extraction.

Five-Compartment Detergent Box

Five compartments support manual detergent addition or connection to an external liquid dosing system.

Electrolux Professional WPB4700H Technical Specifications

Specification Electrolux Professional WPB4700H
Rated capacity 70 kg / 154 lb
Drum volume 690 litres
Drum diameter 1050 mm
Extraction speed 720 rpm
G-factor 300 G
Electric heating 54 kW
Heating alternatives Electric / steam
Water valves DN32
Water pressure 50–600 kPa
Water flow at 250 kPa 200 litres/min
Drain valve 110 mm
Drain capacity 380 litres/min
Steam valve DN25
Steam pressure 300–600 kPa
Compressed-air connection 6 / 8 mm
Compressed-air pressure 550–700 kPa
Sound level (wash / extract) 64 / 83 dB(A)
Dimensions (H × W × D) 2040 × 1496 × 1363 mm
Net weight 2600 kg
Control system Clarus TS

Electrolux Professional WPB4700H Programmes & Controls

Clarus TS combines proven wash programmes, flexible custom programming and process-management options for hygienic barrier laundries.

Digital service support icon

Clarus TS

Industrial Touchscreen

Eight-colour touchscreen control with Electrolux pull-down menus and smart-card support.

Laundry maintenance service icon

Custom Programming

Automatic Drum Control

Automatic drum positioning and outer-door locking support safe loading and unloading.

Commercial laundry equipment icon

Process Management

14 Languages

Selectable languages and optional unload-side display support clear process control.

Available features depend on the selected configuration. Able can confirm the appropriate WPB4700H setup for your laundry.

Additional Features & Options

The Electrolux Professional WPB4700H combines pass-through barrier construction with practical standard features and configurable process-control options.

✓
Two-compartment Pullman drum
✓
Automatic drum positioning
✓
Automatic Drum Control load weighing
✓
Large loading and unloading doors
✓
Gravity unloading
✓
Pneumatic Suspension imbalance control
✓
Five-compartment detergent box
✓
Clarus TS programme control
✓
Smart-card read/write support
✓
Audible and visual cycle alarms
✓
Optional unload-side colour display
✓
Optional integrated weighing
✓
Optional automatic drum-door opening
✓
Optional clean-room version

Some features and equipment are configuration-dependent or available as options. Able can confirm the appropriate WPB4700H specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional WPB4700H should not be the end of the journey. Able can support your laundry from initial equipment specification through to installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the WPB4700H operating reliably throughout its working life.

If your laundry uses commercial laundry chemicals, we can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate WPB4700H configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the WPB4700H at your site.

03

Commissioning & Auto Dosing

We can support commissioning and help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional WPB4700H outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional WPB4700H as a hygienic barrier washer, with Able available to support equipment specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the WPB4700H can also form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux Professional WPB4700H Spec Sheet

Electrolux Professional WPB4700H 70kg aseptic barrier washer
MANUFACTURER TECHNICAL DOCUMENT

Download the Electrolux Professional WPB4700H Spec Sheet

View the manufacturer specification sheet for WPB4700H dimensions, connection data, controls and product features.

The document also includes comparison data for the WPB4700H, WPB4900H and WPB41100H models in the same barrier-washer range.

Request an Electrolux WPB4700H Quote

Tell us what you’re looking for and we’ll help confirm whether the Electrolux Professional WPB4700H is the right aseptic barrier washing machine for your laundry.

Whether you’re ready to purchase the WPB4700H, considering Able Complete360°, or simply want to check the specification against your laundry requirements, give our team the basics and we’ll be in touch.

Request an Electrolux WPB4700H Quote
