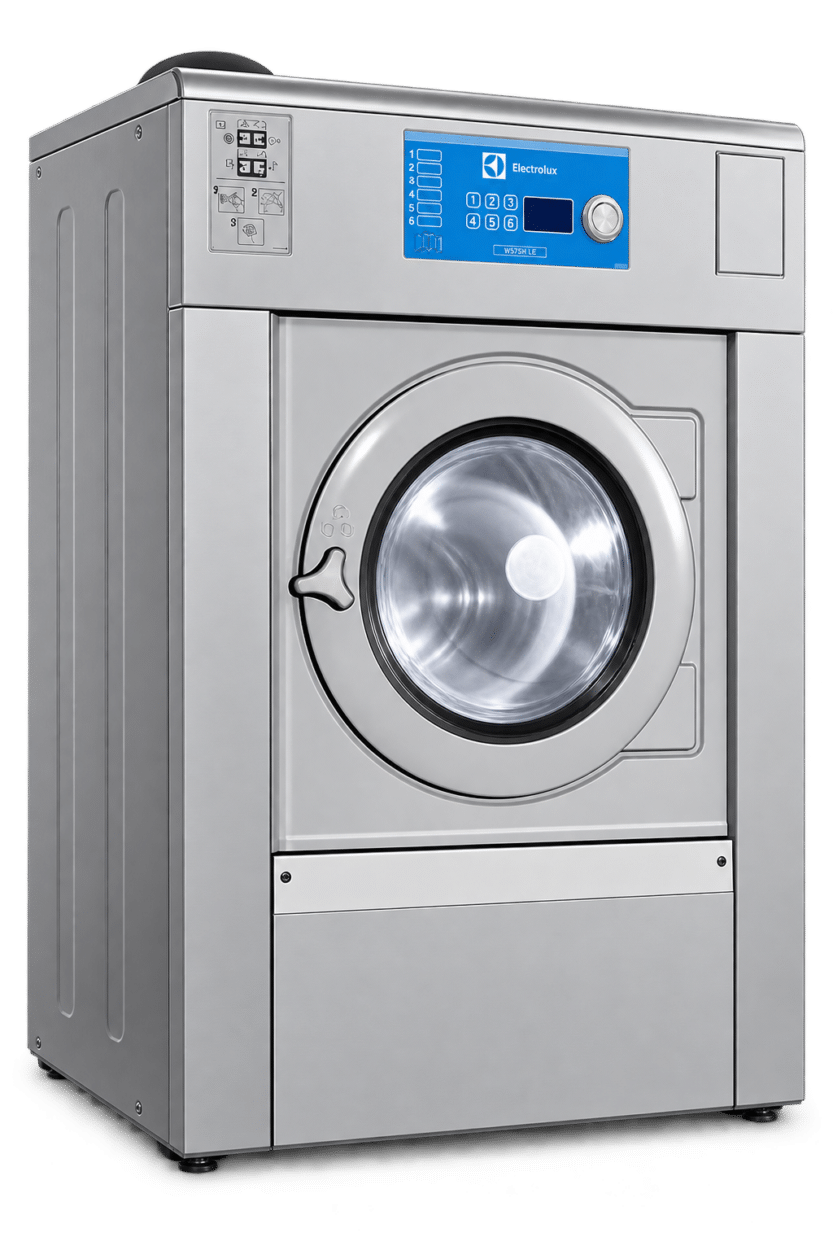

Electrolux W5240H 27kg commercial washing machine

Electrolux W5240H Commercial Washing Machine

The Electrolux Professional W5240H is a 27kg high-spin commercial washer extractor designed for demanding professional laundry environments. Its 240-litre drum, 1005rpm extraction speed and 450G extraction force support efficient washing and moisture removal.

Compass Pro programme control, Automatic Savings and Power Balance combine straightforward operation with load-sensitive efficiency and stable high-speed extraction. Stainless and galvanised steel protect vital components, while electric, steam and non-heated configurations support different site requirements.

Buy the Electrolux Professional W5240H outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux W5240H Quote

Electrolux Professional commercial laundry equipment logo

W5240H

Key Specifications

27kg
Capacity at 1:9
Commercial washing machine capacity icon

240L
Drum volume
Commercial washing machine drum volume icon

1005rpm
Extraction speed
Commercial washing machine extraction speed icon

450G
Extraction force
Commercial laundry G-force icon

Electric / Steam
Non-heated option available

Soft-mount
Washer extractor

1462×1020×990mm
H × W × D

Why Choose the Electrolux Professional W5240H?

High-Speed 450G Extraction

The W5240H reaches 1005rpm and 450G extraction, delivering high extraction force for efficient dewatering before drying.

Automatic Savings

Electrolux Professional’s Automatic Savings system weighs the linen and adjusts water and energy use according to the load on supported programmes.

Compass Pro® Controls

The Compass Pro® microprocessor uses a large display and single control knob, with language selection and quick-access buttons for frequently used programmes and options.

Built for Commercial Laundry

The W5240H uses stainless and galvanised steel in vital parts for corrosion protection, together with a heavy-duty door, gasket and strong hinges.

Power Balance

Power Balance maximises extraction force, reduces stress on the machine and helps minimise vibration during operation.

Automatic Liquid Detergent Option

The W5240H can be configured for automatic liquid detergent supply using the optional I/O board, supporting compatible commercial dosing systems.

Electrolux Professional W5240H Technical Specifications

Specification Electrolux Professional W5240H
Maximum capacity filling factor 1:9 27 kg / 60 lb
Drum volume 240 litres
Drum diameter 795 mm
Extraction speed 1005 rpm
G-Factor 450 G
Standard electric heating 19.1 / 19.8 / 23.0 kW
Steam / non-heated Available
Water valves DN20
Water pressure 200-600 kPa
Water inlet capacity at 300 kPa 60 litres/min
Drain valve diameter 75 mm
Draining capacity 170 litres/min
Steam valve DN15
Steam pressure 300-600 kPa
Liquid detergent supplies 5
Dynamic force frequency 16.8 Hz
Floor load at max extraction 5.2 ± 1.0 kN
Sound power / pressure at extraction 83 / 68 dB(A)
Sound power / pressure at wash 64 / 48 dB(A)
Heat emission 5% of installed power, max
Dimensions (H x W x D) 1462 x 1020 x 990 mm
Door opening 435 mm
Net weight 425 kg
Shipping volume 1.82 m3

Electrolux Professional W5240H Control and Efficiency

Compass Pro

Programme Control

Large display, language selection and quick-access buttons simplify everyday programme selection.

Automatic Savings

Load-Sensitive Efficiency

The machine adjusts water and energy use to the measured laundry load.

Power Balance

High-Spin Stability

Extraction is continuously managed to maximise dewatering while reducing vibration and stress.

Additional Features & Options

The Electrolux Professional W5240H combines practical commercial-laundry features with a range of available equipment and configuration options.

✓
Compass Pro® microprocessor control

✓
Automatic Savings

✓
Four-compartment detergent box

✓
Heavy-duty door, gasket and strong hinges

✓
Stainless and galvanised steel in vital parts

✓
Power Balance

✓
Automatic liquid detergent supply option

✓
Booking / payment / coin-meter connection option

✓
75 mm drain valve

✓
Re-used water connection

✓
450G extraction force

✓
Electric, steam or non-heated configurations

✓
435 mm door opening

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate W5240H specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional W5240H should not be the end of the journey. Able can support your laundry from initial equipment specification through to installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the W5240H operating reliably throughout its working life.

If your laundry uses commercial laundry chemicals, we can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate W5240H configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the W5240H at your site.

03

Commissioning & Auto Dosing

We can support commissioning and help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional W5240H outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional W5240H as a standalone commercial washing machine, with Able available to support equipment specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the W5240H can also form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux Professional W5240H Spec Sheet

Electrolux Professional W5240H commercial washer extractor

MANUFACTURER TECHNICAL DOCUMENT

Download the Electrolux Professional W5240H Spec Sheet

View the manufacturer specification sheet for detailed W5240H technical information, including machine dimensions, connection positions, control options and product features.

Use the manufacturer document for full technical data, connection requirements, dimensions, electrical variants and configuration-dependent options.

Request an Electrolux Professional W5240H Quote

Tell us what you’re looking for and we’ll help confirm whether the Electrolux Professional W5240H is the right commercial washing machine for your laundry.

Whether you’re ready to purchase the W5240H, considering Able Complete360°, or simply want to check the specification against your laundry requirements, give our team the basics and we’ll take it from there.


Request a quote for Electrolux W5240H Washing Machine
