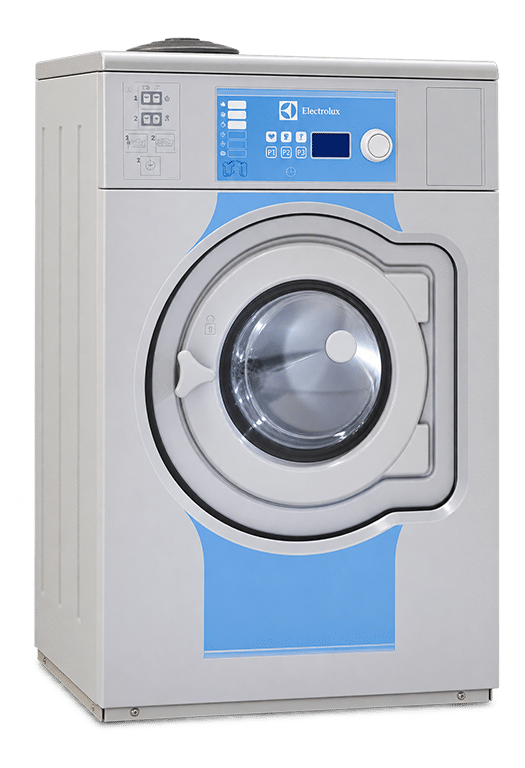

Electrolux W5180N 20kg commercial washing machine

Electrolux W5180N Commercial Washing Machine

The Electrolux Professional W5180N is a 20kg normal-spin commercial washer extractor designed for demanding professional laundry environments. Its 180-litre drum, 525rpm extraction speed and 100G extraction force provide a practical balance of washing capacity and dependable commercial performance.

The W5180N combines Compass Pro programme control with a four-compartment detergent box, robust door construction and stainless or galvanised steel across vital components for long-term use. SuperBalance helps maintain the correct extraction force, while electric, steam and non-heated configurations support different site requirements.

Buy the Electrolux Professional W5180N outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux W5180N Quote

Electrolux Professional commercial laundry equipment logo

W5180N

Key Specifications

20kg
Capacity at 1:9
Commercial washing machine capacity icon

180L
Drum volume
Commercial washing machine drum volume icon

525rpm
Extraction speed
Commercial washing machine extraction speed icon

100G
Extraction force
Commercial laundry G-force icon

Electric / Steam
Non-heated option available

Solid-mount
Washer extractor

1345×750×914mm
H × W × D

Why Choose the Electrolux Professional W5180N?

High-Speed 100G Extraction

The W5180N reaches 525rpm and 100G extraction, providing efficient dewatering for professional laundry operation.

Low Water & Energy Consumption

Electrolux Professional specifies extremely low water and energy consumption for the W5180N, helping support efficient day-to-day operation.

Compass Pro® Controls

The Compass Pro® microprocessor uses a large display and single control knob, with language selection and quick-access buttons for frequently used programmes and options.

Built for Commercial Laundry

The W5180N uses stainless and galvanised steel in vital parts for corrosion protection, together with a heavy-duty door, gasket and strong hinges.

SuperBalance

SuperBalance helps maintain the correct extraction force for stable and consistent spin performance.

Automatic Liquid Detergent Option

The W5180N can be configured for automatic liquid detergent supply using the optional I/O board, supporting compatible commercial dosing systems.

Electrolux Professional W5180N Technical Specifications

Specification Electrolux Professional W5180N
Capacity filling factor 1:9 20 kg / 45 lb
Drum volume 180 litres
Drum diameter 650 mm
Extraction speed 525 rpm
G-Factor 100 G
Standard electric heating 13.0 kW
Steam / non-heated Available
Water valves DN20
Water pressure 200-600 kPa
Water inlet capacity at 300 kPa 30 litres/min
Drain valve diameter 75 mm
Draining capacity 170 litres/min
Steam valve DN15
Steam pressure 300-600 kPa
Liquid detergent supplies 5
Dynamic force frequency 8.8 Hz
Floor load at max extraction 2.9 ± 3.9 kN
Sound power / pressure at extraction 70 / 55 dB(A)
Sound power / pressure at wash 67 / 52 dB(A)
Dimensions (H x W x D) 1345 x 750 x 914 mm
Door opening 395 mm
Net weight 207 kg
Shipping volume 1.26 m3

Electrolux Professional W5180N Control Options

The Electrolux Professional W5180N uses Compass Pro® control, combining straightforward programme selection with language choice, quick-access buttons and programme packages optimised around Economy, Performance and Time.

Compass Pro®

Large Display & Single Control Knob

Straightforward programme selection with language choice and a clear, user-friendly operating interface.

Quick Selection

Frequently Used Programmes

Quick-selection and option buttons give staff faster access to the wash programmes and options used most often.

Programme Packages

Economy, Performance & Time

General programme packages can be optimised around economy, performance or time to suit different laundry priorities.

Control availability and machine configuration can vary. Able can help confirm the appropriate W5180N control setup for your laundry requirements.

Additional Features & Options

The Electrolux Professional W5180N combines practical commercial-laundry features with a range of available equipment and configuration options.

✓
Compass Pro® microprocessor control

✓
Four-compartment detergent box

✓
Heavy-duty door, gasket and hinges

✓
Stainless and galvanised steel in vital parts

✓
SuperBalance extraction control

✓
Automatic liquid detergent supply option

✓
Booking / payment / coin-meter connection option

✓
75 mm drain valve

✓
Re-used water connection

✓
100G extraction force

✓
Electric, steam or non-heated configurations

✓
395 mm door opening

✓
Five liquid detergent supply connections

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate W5180N specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional W5180N should not be the end of the journey. Able can support your laundry from initial equipment specification through to installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the W5180N operating reliably throughout its working life.

If your laundry uses commercial laundry chemicals, we can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate W5180N configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the W5180N at your site.

03

Commissioning & Auto Dosing

We can support commissioning and help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional W5180N outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional W5180N as a standalone commercial washing machine, with Able available to support equipment specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the W5180N can also form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux Professional W5180N Spec Sheet

Electrolux Professional W5180N commercial washer extractor

MANUFACTURER TECHNICAL DOCUMENT

Download the Electrolux Professional W5180N Spec Sheet

View the manufacturer specification sheet for detailed W5180N technical information, including machine dimensions, connection positions, control options and product features.

Use the manufacturer document for full technical data, connection requirements, dimensions, electrical variants and configuration-dependent options.

Request an Electrolux Professional W5180N Quote

Tell us what you’re looking for and we’ll help confirm whether the Electrolux Professional W5180N is the right commercial washing machine for your laundry.

Whether you’re ready to purchase the W5180N, considering Able Complete360°, or simply want to check the specification against your laundry requirements, give our team the basics and we’ll take it from there.
