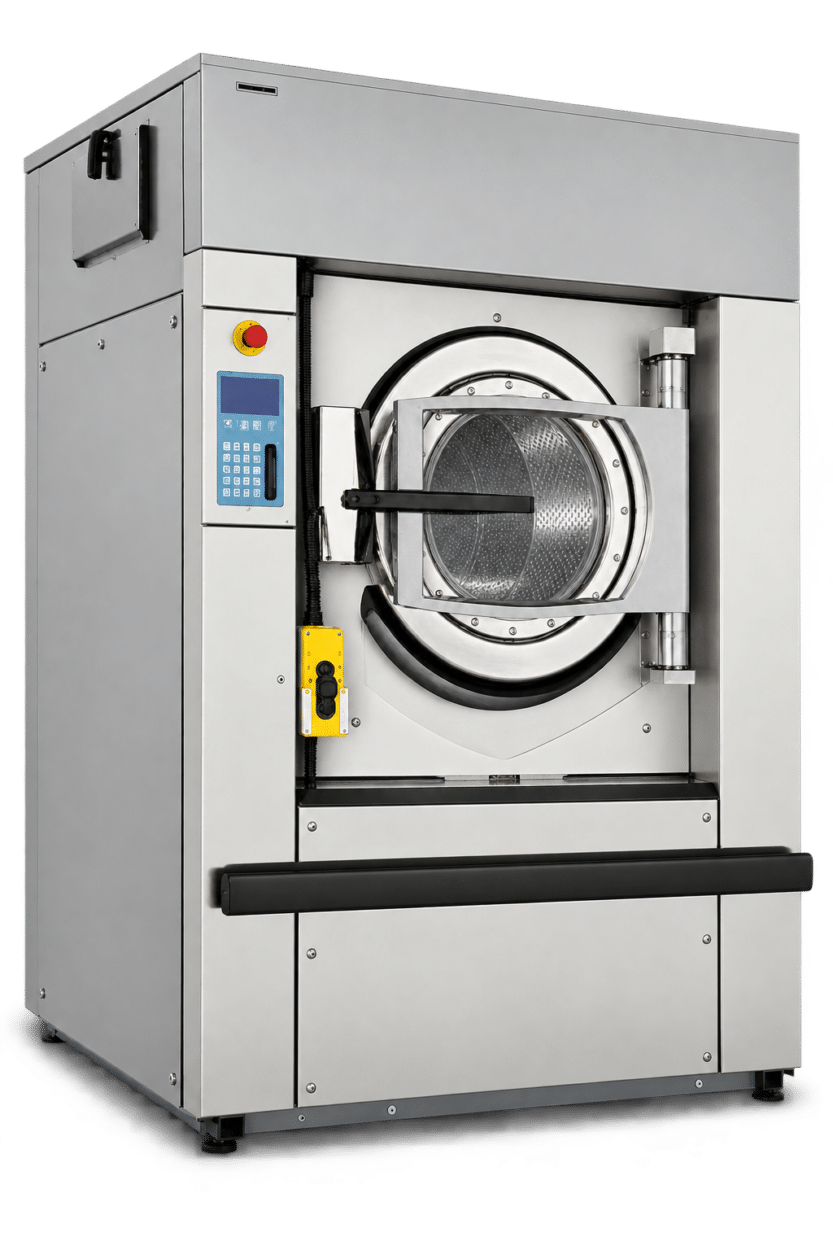

Electrolux W4850H 90kg industrial washing machine

Electrolux W4850H Industrial Washing Machine

The Electrolux Professional W4850H is a 90kg high-spin industrial washer extractor designed for demanding professional laundry environments. Its 850-litre drum, 720rpm extraction speed and 350G extraction force support efficient washing and moisture removal.

Clarus Control provides extensive programme flexibility, while the frequency-controlled motor, robust stainless-steel critical components and compatible liquid-detergent connections support intensive industrial use. Available steam / non-heated configurations allow the machine to be matched to site utilities.

Buy the Electrolux Professional W4850H outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux W4850H Quote

Electrolux Professional commercial laundry equipment logo

W4850H

Key Specifications

90kg
Capacity at 1:9
Commercial washing machine capacity icon

850L
Drum volume
Commercial washing machine drum volume icon

720rpm
Extraction speed
Commercial washing machine extraction speed icon

350G
Extraction force
Commercial laundry G-force icon

Steam / Non-heated
Heating options

Soft-mount
Washer extractor

2190×1640×1635mm
Standard H × W × D

Why Choose the Electrolux Professional W4850H?

High-Speed 350G Extraction

The W4850H reaches 720rpm and 350G extraction, providing high extraction force for efficient dewatering.

Clarus Control®

Clarus Control® provides 9 fixed programmes and capacity for up to 192 freely programmable programmes for flexible industrial laundry operation.

Frequency-Controlled Motor

A frequency-controlled motor supports controlled washing and extraction speeds for dependable professional operation.

Heavy-Duty Construction

All critical parts are made from stainless steel, with powder-painted galvanised steel side panels for corrosion resistance.

Steam / Non-heated Configurations

The W4850H is available with direct steam heating or non-heated configuration, with electric heating not offered on this model.

Chemical Dosing Integration

The machine provides eight liquid-detergent connections and is supplied with 8 + 5 signals for compatible liquid detergent systems.

Electrolux Professional W4850H Technical Specifications

Specification Electrolux Professional W4850H
Maximum capacity filling factor 1:9 90 kg / 200 lb
Drum volume 850 litres
Drum diameter 1220 mm
Extraction speed 720 rpm
G-Factor 350 G
Heating alternatives Steam / non-heated
Electric heating Not available
Water valves DN32
Recommended water pressure 200-600 kPa
Water valve functioning limits 50-1000 kPa
Water inlet capacity at 300 kPa 150 litres/min
Drain valve diameter 110 mm
Draining capacity 400 litres/min
Steam valve DN32
Recommended steam pressure 300-600 kPa
Steam valve functioning limits 50-800 kPa
Compressed air connection DN6
Air pressure 500-700 kPa
Air consumption 20 litres/hour
Five-compartment detergent injector DN20
Dynamic force frequency 12.0 Hz
Floor load at max extraction 25.9 ± 1.5 kN
Sound power / pressure at extraction 87 / 70 dB(A)
Sound power / pressure at wash 71 / 54 dB(A)
Sound pressure with insulation < 70 dB(A)
Heat emission 6.7% of installed power, max
Dimensions (standard H x W x D) 2190 x 1640 x 1635 mm
Height with tilt + IWS 2230 mm
Door opening 700 mm
Net weight 2200 kg
Shipping volume 7.6 m3

Electrolux Professional W4850H Control and Efficiency

Clarus Control

Programmable Microprocessor

Nine fixed programmes and capacity for up to 192 freely programmable cycles.

Integrated Saving

Process Efficiency

Available Integrated Saving functionality supports visibility and control over resource use.

Installation Options

Loading and Unloading Support

Tilting, loading-hopper and water-recovery options can be specified where required.

Additional Features & Options

The Electrolux Professional W4850H combines practical commercial-laundry features with a range of available equipment and configuration options.

✓
Clarus Control® programmable microprocessor

✓
9 fixed and up to 192 freely programmable programmes

✓
Frequency-controlled motor

✓
Eight liquid-detergent connections

✓
8 + 5 signals for liquid detergent systems

✓
All critical parts made from stainless steel

✓
Powder-painted galvanised steel side panels

✓
110 mm drain valve

✓
Five-compartment detergent box option

✓
Third water valve option

✓
Integrated Saving (IS) option

✓
Water / wash-solution recovery option

✓
Forward or forward/backward tilting options

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate W4850H specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional W4850H should not be the end of the journey. Able can support your laundry from initial equipment specification through to installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the W4850H operating reliably throughout its working life.

If your laundry uses commercial laundry chemicals, we can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate W4850H configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the W4850H at your site.

03

Commissioning & Auto Dosing

We can support commissioning and help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional W4850H outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional W4850H as a standalone commercial washing machine, with Able available to support equipment specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the W4850H can also form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux Professional W4850H Spec Sheet

Electrolux Professional W4850H industrial washer extractor

MANUFACTURER TECHNICAL DOCUMENT

Download the Electrolux Professional W4850H Spec Sheet

View the manufacturer specification sheet for detailed W4850H technical information, including machine dimensions, connection positions, control options and product features.

Use the manufacturer document for full technical data, connection requirements, dimensions, electrical variants and configuration-dependent options.

Request an Electrolux Professional W4850H Quote

Tell us what you’re looking for and we’ll help confirm whether the Electrolux Professional W4850H is the right industrial washing machine for your laundry.

Whether you’re ready to purchase the W4850H, considering Able Complete360°, or simply want to check the specification against your laundry requirements, give our team the basics and we’ll take it from there.
