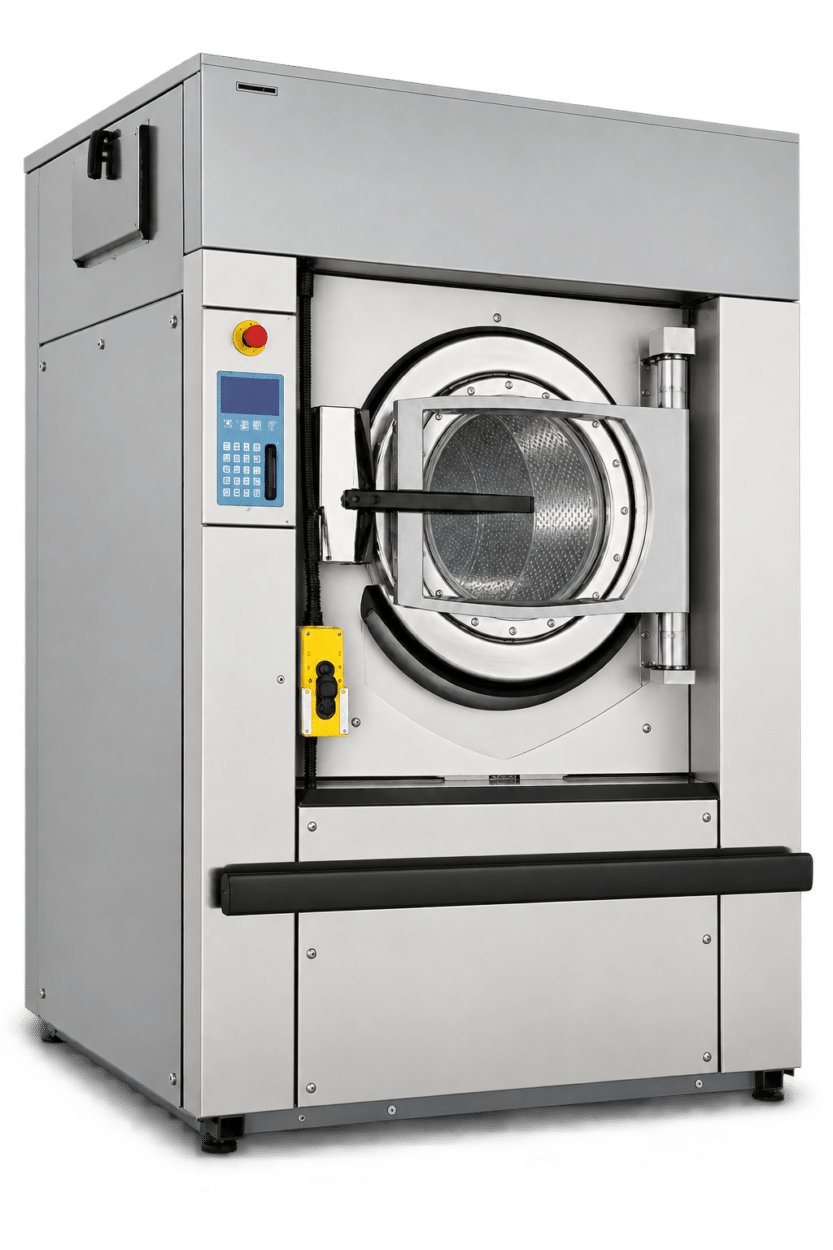

Electrolux W41100H 120kg industrial washing machine

Electrolux W41100H Industrial Washing Machine

The Electrolux W41100H is a 120kg industrial washing machine for professional laundries. Its 1100-litre drum, 663rpm extraction and 300G force support dependable washing and dewatering.

Clarus Control offers nine fixed programmes and capacity for up to 192 programmes. Eight liquid-detergent connections, a 700mm door opening and optional tilting support high-volume laundry operations. Steam and non-heated versions are available.

Purchase the Electrolux W41100H outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux W41100H Quote
Electrolux Professional commercial laundry equipment logo

W41100H

Key Specifications

120kg
Maximum capacity
Commercial washing machine capacity icon
1100L
Drum volume
Commercial washing machine drum volume icon
663rpm
Extraction speed
Commercial washing machine extraction speed icon
300G
Extraction force
Commercial laundry G-force icon

Steam / Non-Heated
Flexible heating options

Softmount
Suspended high-spin washer

2190 × 1640 × 1850mm
H × W × D

Why Choose the Electrolux W41100H?

120kg Professional Capacity

The W41100H provides a 1100-litre drum and 120kg capacity for professional laundry operation.

300G Extraction

663rpm extraction and 300G force help remove water from the load before drying.

Clarus Control

A programmable microprocessor provides nine fixed programmes and capacity for up to 192 programmes, allowing wash processes to be adapted to the laundry.

Commercial Dosing Connections

Eight liquid-detergent connections and 8 + 5 dosing signals support a compatible professional chemical system.

Large-Door Loading

A 700mm door opening supports loading and unloading large batches. Optional tilting with drum reversal can assist unloading into a trolley.

Industrial Construction

Stainless-steel critical parts, galvanised side panels and oil-lubricated bearing seals support demanding industrial laundry use.

Electrolux W41100H Technical Specifications

Specification Electrolux W41100H
Maximum capacity 120 kg / 265 lb
Drum volume 1100 litres
Drum diameter 1220 mm
Extraction speed 663 rpm
Extraction force 300G
Control Clarus Control
Heating alternatives Steam, Non-Heated
Electrical supply 220–240V 3~ or 380–480V 3~; 50/60 Hz
Total electrical power 6.3 kW
Recommended fuse 25A at 220–240V; 16A at 380–480V
Water inlet valves DN 32
Recommended water pressure 200–600 kPa
Water flow at 300 kPa 150 litres/minute
Drain valve diameter 110 mm
Draining capacity 400 litres/minute
Steam valve DN 32
Recommended steam pressure 300–600 kPa
Compressed-air connection DN 6
Compressed-air pressure 500–700 kPa
Air consumption 20 litres/hour
Liquid detergent connections 8 connections; 8 + 5 dosing signals
Door opening diameter 700 mm
Standard dimensions (H × W × D) 2190 × 1640 × 1850 mm
Height — tilt + IWS version 2230 mm
Net weight 2300 kg (average; configuration-dependent)
Shipping volume 8.4 m³ (average; configuration-dependent)
Dynamic-force frequency 11.1 Hz
Floor load at maximum extraction 27.9 ± 2.0 kN
Sound pressure level 73 dB(A); below 70 dB(A) with optional insulation
Maximum heat emission at 90°C 6.8% of installed power
Protection class IP X4D

Specifications follow the manufacturer document. Electrical versions, optional equipment and shipping figures depend on configuration; Able can confirm the installation requirements.

Electrolux W41100H Programmes & Controls

Clarus Control combines programmable wash processes with industrial dosing provision and frequency-controlled washing.

Clarus Control

Nine Fixed Programmes

A programmable microprocessor provides nine fixed programmes and capacity for up to 192 programmes for application-specific washing.

Wash Programme Manager

PC Programme Creation

The optional WPM PC tool allows wash programmes to be created on a computer and transferred by memory card.

Frequency-Controlled Motor

Controlled Wash Action

A frequency-controlled motor supports controlled washing and high-speed extraction for large laundry loads.

Control, connectivity and machine configuration can vary. Able can help confirm the appropriate W41100H setup for your laundry requirements.

Additional Features & Options

Practical controls, professional construction and configuration options support dependable day-to-day laundry operation.

✓
120kg washing capacity
✓
1100-litre drum
✓
663rpm extraction and 300G force
✓
Clarus Control with nine fixed and up to 192 programmes
✓
Eight liquid-detergent connections and 8 + 5 dosing signals
✓
700mm door opening
✓
Direct steam and non-heated alternatives
✓
Optional forward or forward/backward tilting
✓
Optional noise/heat insulation
✓
Optional water/wash-solution recovery system
✓
Optional five-compartment detergent box
✓
Optional CMIS connection and WPM PC programme tool

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate W41100H specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Able can support your laundry from initial W41100H equipment specification through delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the machine operating reliably throughout its working life.

We can also help incorporate the machine into a supported auto dosing setup.

01

Equipment Specification

We can help confirm the appropriate W41100H configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support installation and commissioning at your site.

03

Commissioning & Auto Dosing

We can help integrate compatible commercial laundry chemical dosing where required.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available for your commercial laundry equipment.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux W41100H outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux W41100H as a standalone industrial washing machine, with Able available to support specification, installation and ongoing servicing.

OPTION 02

Able Complete360°

The W41100H can form part of an Able Complete360° laundry solution, bringing equipment, installation, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux W41100H Spec Sheet

Electrolux W41100H 120kg washing machine
MANUFACTURER TECHNICAL DOCUMENT

View the Electrolux W41100H Spec Sheet

View the Electrolux Professional manufacturer document for W41100H technical information, machine dimensions and product features.

The document covers the W41100H. Installation requirements and optional equipment depend on the selected configuration.

Request an Electrolux W41100H Quote

Tell us what you’re looking for and we’ll help confirm whether the Electrolux W41100H is the right washing machine for your laundry.

Whether you’re ready to purchase the W41100H, considering Able Complete360°, or checking the specification against your requirements, give our team the basics and we’ll take it from there.

Request an Electrolux W41100H Quote
