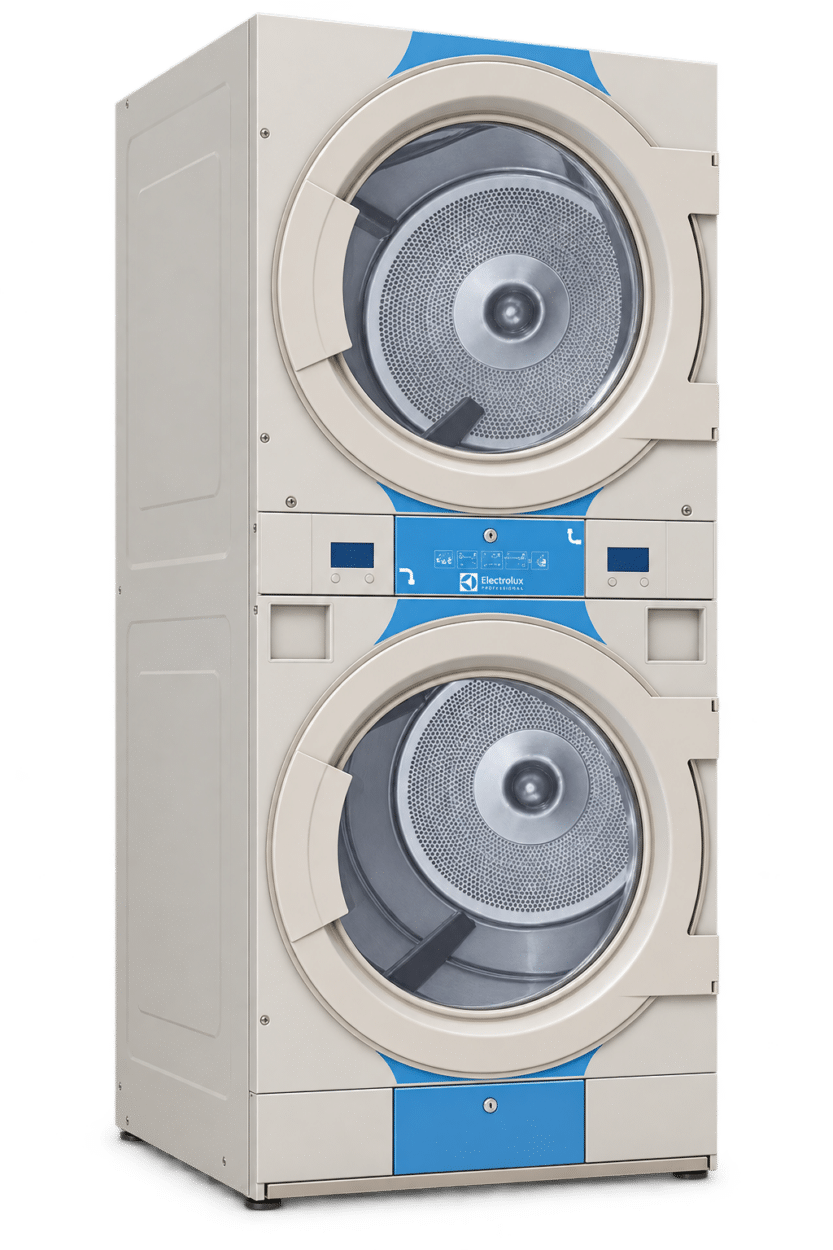

Electrolux T5425S 2 x 24kg double stack commercial tumble dryer

Electrolux Professional T5425S Stacked Commercial Tumble Dryer

The Electrolux Professional T5425S is a gas-heated stacked commercial tumble dryer with two 423-litre pockets, each rated at 23.5kg using a 1:18 loading ratio or 19.2kg at 1:22. Its vertical layout brings two drying pockets into one cabinet, helping make practical use of laundry floor space.

Compass Pro offers a clear display, temperature and time selection, language selection and service settings. Large 687mm door openings and front and rear access support loading and maintenance. Drum reversing, stainless-steel front and drum configurations, and payment connections are available as options.

Purchase the Electrolux Professional T5425S outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux Professional T5425S Stacked Quote

Electrolux Professional Commercial Laundry Equipment

T5425S

Key Specifications

2 × 23.5kg
Drying capacity (2 pockets, 1:18)
Commercial laundry machine capacity icon

2 × 423L
Drum volume (2 pockets)
Commercial laundry machine drum volume icon

1700 m³/h
Airflow
Commercial tumble dryer airflow icon

200mm
Exhaust connection

Gas heating icon

Gas
Gas-heated tumble dryer

Freestanding tumble dryer icon

Stacked
Commercial tumble dryer

Commercial laundry machine dimensions icon

2086 × 868 × 1336mm
H × W × D

Electrolux Professional T5425S Technical Specifications

Model Electrolux Professional T5425S
Dryer type Stacked vented tumble dryer
Number of drying pockets 2
Drying capacity per pocket — loading ratio 1:18 23.5 kg
Drying capacity per pocket — loading ratio 1:22 19.2 kg
Drum volume per pocket 423 litres
Drum diameter per pocket 832 mm
Heating Gas
Gas heating input per pocket 27.5 kW
Airflow — gas, as stated in sheet 1700 m³/hour
Exhaust connection 200 mm
Maximum pressure drop — gas 520 Pa
Gas connection ¾-inch ISO 7/1-R
Natural gas pressure 20–25 mbar
Propane pressure 28–50 mbar
Door opening diameter 687 mm
Control Compass Pro; coin and OPL user-panel configurations
Drum reversing Optional
Stainless-steel front and drum Optional
380–480V three-phase, 50/60Hz — electrical total / fuse 1.5 kW / 10 A
230–240V single-phase, 50Hz — electrical total / fuse 1.7 kW / 10 A
Electrical supply Depends on configuration; confirm connections for both pockets before installation
Sound power / pressure level during drying 77 / 60 dB(A)
Maximum heat emission 15% of installed power
Overall dimensions (H × W × D) 2086 × 868 × 1336 mm
Net weight — average, complete machine 440 kg
Crated shipping volume — average 2.8 m³
Protection class IP X4D

Capacity, drum volume and gas-heating figures are stated per pocket where labelled; dimensions and machine weight refer to the complete stacked unit. Each pocket is rated at 23.5kg at 1:18, or 19.2kg at 1:22. This specification is for the gas-heated T5425S. Able can confirm electrical connections, gas services, exhaust arrangements and installation clearances before ordering.

Electrolux Professional T5425S Control Options

Compass Pro offers a clear display, language selection and service settings. User-panel configurations are available for coin operation and on-premise laundries, with drum reversing available as an option.

Compass Pro icon

Compass Pro

Clear Programme Selection

Select temperature and drying time through a user-friendly interface. Language selection, USB connection and service settings for temperature and cool-down support setup and operation.

Payment Options icon

Payment Options

Optional Coin or Payment Connection

A booking or payment-system connection or coin meter can be specified. The coin version offers Ecopower to help avoid over-drying. Able can confirm the required payment setup.

Drum Reversing

Optional Reverse Action

An optional reversing-drum configuration can be specified. Able can confirm the appropriate controls and equipment for your laundry requirements.

Payment equipment and accessories depend on the selected configuration. Able can help confirm the appropriate setup for your laundry.

Additional Features & Options

The Electrolux Professional T5425S combines adaptable drying controls, fabric-care features and practical maintenance access for professional laundry operation.

✓

Two stacked 423-litre drying pockets
✓

Large 687mm door openings
✓

Gas heating rated at 27.5kW per pocket
✓

Selection of drying temperature and time
✓

Compass Pro clear display
✓

Selectable operating language and USB connection
✓

Front and rear access for servicing
✓

Coin and on-premise laundry user-panel configurations
✓

Optional reversing drum
✓

Optional stainless-steel front
✓

Optional stainless-steel drums
✓

Optional booking/payment connection or coin meter

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate T5425S specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional T5425S should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the T5425S operating reliably throughout its working life.

We can also help confirm the appropriate heating configuration, exhaust requirements and installation services for your site before the dryer is commissioned.

01

Equipment Specification

We can help confirm the appropriate T5425S configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the T5425S at your site.

03

Commissioning & Operator Setup

We can support commissioning, control setup and operator guidance, helping ensure the dryer is ready for dependable day-to-day use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional T5425S outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional T5425S as a standalone commercial tumble dryer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the T5425S can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux T5425S Spec Sheet

Electrolux Professional T5425S double-stack commercial tumble dryer
MANUFACTURER TECHNICAL DOCUMENT

View Electrolux T5425S Spec Sheet

View the manufacturer’s T5425S specification sheet for per-pocket capacities, gas heating, controls, connections, overall dimensions and options.

Request an Electrolux T5425S Quote

Tell us about your laundry, typical loads and available floor space, and we’ll help confirm whether the Electrolux Professional T5425S gas-heated stacked tumble dryer is right for your site.

Whether you’re considering outright purchase or Able Complete360°, or need to check gas supply, controls, payment options, access and installation requirements, give our team the basics and we’ll take it from there.

Request an Electrolux Professional T5425S Quote
