Electrolux T5350 20kg commercial tumble dryer

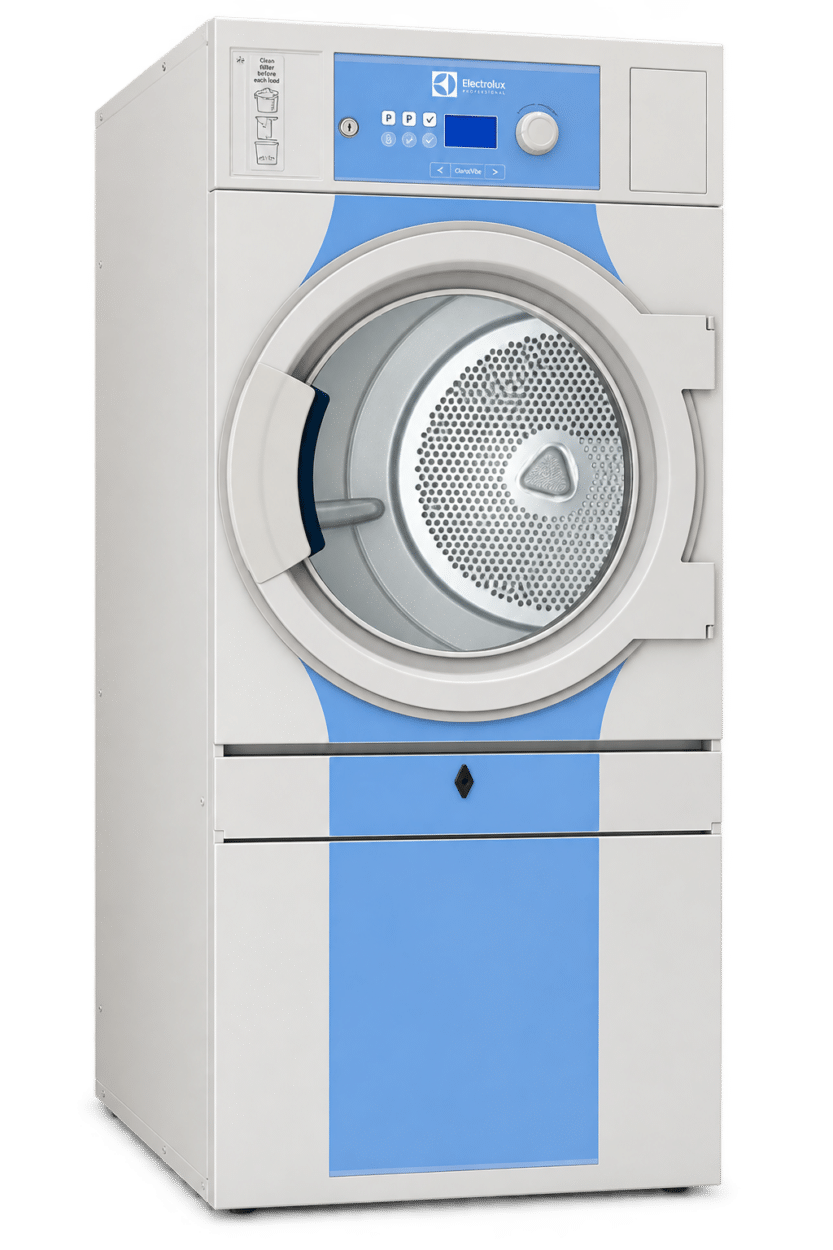

Electrolux Professional T5350 Commercial Tumble Dryer

The Electrolux Professional T5350 is a vented commercial tumble dryer with a 349-litre drum, rated at 19.4kg using a 1:18 loading ratio or 15.5kg at 1:22. Its large 580mm door opening, self-cleaning lint screen and reversible door support practical daily laundry operation.

Separate gas, electric or steam-heated versions are available. Compass Pro combines a large display and control knob with programme packages for Economy, Care and Time. Residual Moisture Control, drum reversing, stainless-steel front and drum configurations, and payment equipment are available as options.

Purchase the Electrolux Professional T5350 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux Professional T5350 Quote

Electrolux Professional Commercial Laundry Equipment

T5350

Key Specifications

19.4kg
Drying capacity (1:18)
Commercial laundry machine capacity icon

349L
Drum volume
Commercial laundry machine drum volume icon

1000 m³/h
Maximum airflow
Commercial tumble dryer airflow icon

200mm
Exhaust connection

Gas, electric and steam heating options icon

Gas / Electric / Steam
Alternative heating versions

Freestanding tumble dryer icon

Freestanding
Commercial tumble dryer

Commercial laundry machine dimensions icon

1770 × 790 × 1177–1344mm
H × W × D

Electrolux Professional T5350 Technical Specifications

Model Electrolux Professional T5350
Drying capacity — loading ratio 1:18 19.4 kg
Drying capacity — loading ratio 1:22 15.5 kg
Drum volume 349 litres
Drum diameter 760 mm
Dryer type Vented tumble dryer
Heating options Gas / electric / steam
Electric heating alternatives 13.2 / 13.5 / 18 kW; depends on supply
Gas heating input 21 kW
Steam heating output at 800 kPa 25 kW
Airflow — 13.5kW electric 600 m³/hour
Airflow — 18kW electric / gas / steam 1000 m³/hour
Exhaust connection 200 mm
Maximum pressure drop — 13.5kW electric 520 Pa
Maximum pressure drop — 18kW electric / gas / steam 270 Pa
Gas connection ½-inch ISO 7/1-R
Natural gas pressure 20 mbar
Propane pressure 28–50 mbar
Steam connection 1-inch ISO 7/1-R
Condensate connection 1-inch ISO 7/1-R
Steam pressure range 100–1000 kPa
Steam consumption 65 kg/hour
Door opening diameter 580 mm
Control Compass Pro
Residual Moisture Control Optional
Drum reversing Optional
Stainless-steel front and drum Optional
380–415V three-phase + neutral, 50/60Hz — heating / total / fuse 13.5 or 18 kW / 14.6 or 19.1 kW / 25 or 35 A
Gas or steam version — electrical total power 1.1 kW; three-phase supply depends on configuration
Sound power / pressure level during drying 74 / 58 dB(A)
Maximum heat emission 15% of installed power
Electric / gas dimensions (H × W × D) 1770 × 790 × 1177 mm
Steam dimensions (H × W × D) 1770 × 790 × 1344 mm
Net weight — average 177 kg
Crated shipping volume — average 1.96 m³
Protection class IP X4D

Capacity is 19.4kg at a 1:18 loading ratio, or 15.5kg at 1:22. Airflow, electrical requirements and cabinet depth depend on the heating version. Steam-heated models have a depth of 1344mm; electric and gas versions are 1177mm deep. Able can confirm the selected configuration, site services and installation clearances before ordering.

Electrolux Professional T5350 Control Options

Compass Pro provides a clear display and control knob, with programme packages for Economy, Care and Time. Residual Moisture Control, payment connections and drum reversing can be specified as options.

Compass Pro icon

Compass Pro

Clear Programme Selection

Use the large display, control knob and quick-selection buttons to choose drying programmes. Language selection, service settings and USB connection support setup and operation.

Payment Options icon

Payment Options

Optional Coin, Chipcard or Central Payment

A coin meter with Ecopower, chipcard reader or central payment connection can be specified. Able can confirm the appropriate payment setup for your laundry.

Residual Moisture Control

Optional Moisture Sensing

Optional Residual Moisture Control monitors the load to help achieve the selected drying result. Drum reversing is also available as a separate option.

Payment equipment and accessories depend on the selected configuration. Able can help confirm the appropriate setup for your laundry.

Additional Features & Options

The Electrolux Professional T5350 combines adaptable drying controls, fabric-care features and practical maintenance access for professional laundry operation.

✓

Compass Pro display and single control knob
✓

Selectable operating language
✓

Quick-selection and programme-option buttons
✓

Economy, Care and Time programme packages
✓

Large self-cleaning lint screen
✓

Large 580mm door opening
✓

Reversible door hanging
✓

Front and rear access for servicing
✓

Optional Residual Moisture Control and drum reversing
✓

Optional stainless-steel front and drum
✓

Optional coin, chipcard or central payment connection
✓

Optional fresh-air intake, supply disconnector and CMIS

Some features and equipment are configuration-dependent or available as options. Able can help confirm the appropriate T5350 specification for your laundry.

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux Professional T5350 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the T5350 operating reliably throughout its working life.

We can also help confirm the appropriate heating configuration, exhaust requirements and installation services for your site before the dryer is commissioned.

01

Equipment Specification

We can help confirm the appropriate T5350 configuration for your laundry requirements.

02

Delivery & Installation

Able can arrange delivery and support the installation of the T5350 at your site.

03

Commissioning & Operator Setup

We can support commissioning, control setup and operator guidance, helping ensure the dryer is ready for dependable day-to-day use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux Professional T5350 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux Professional T5350 as a standalone commercial tumble dryer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the T5350 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux T5350 Spec Sheet

Electrolux Professional T5350 commercial tumble dryer
MANUFACTURER TECHNICAL DOCUMENT

View Electrolux T5350 Spec Sheet

View the manufacturer’s T5350 specification sheet for rated capacities, gas, electric and steam versions, airflow, exhaust requirements, dimensions and available options.

Request an Electrolux T5350 Quote

Tell us about your laundry, typical loads and available space, and we’ll help confirm whether the Electrolux Professional T5350 is the right commercial tumble dryer for your site.

Whether you’re considering outright purchase or Able Complete360°, or need to check heating, moisture sensing, payment options and installation requirements, give our team the basics and we’ll take it from there.

Request an Electrolux Professional T5350 Quote
