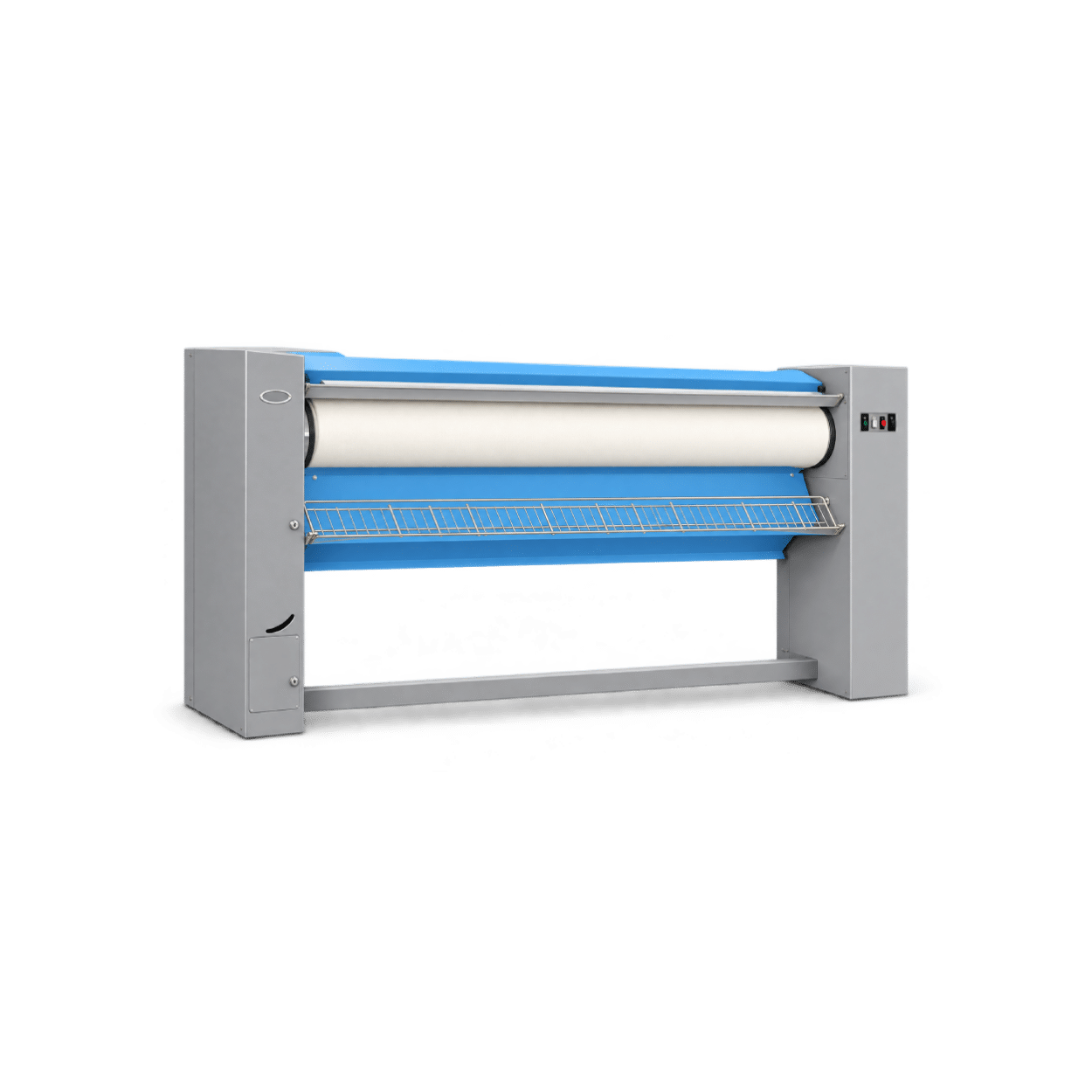

Electrolux Professional IB42310 1m commercial rotary ironer featuring a blue ironing unit, roller and front safety guard.

Electrolux IB42310 Commercial Rotary Ironer

The Electrolux IB42310 is an electric commercial rotary ironer with a 1000mm working width, 230mm roller and 5kW heating. Its standard ironing speed of 3.4m/min and adjustable temperature support everyday finishing of flat linen.

A return feed system, ergonomic control pedal and steel feeding table and reception tray support practical linen handling. Finger guard protection provides an additional operator safeguard, with variable speed control, coin meter operation and Nomex roller padding available as options.

Purchase the Electrolux IB42310 outright or choose Able Complete360° for equipment, installation, servicing and ongoing support in one fixed monthly cost.

Request an Electrolux IB42310 Quote
Electrolux Professional commercial laundry equipment logo

IB42310

Key Specifications

1000mm
Working width
230mm
Roller diameter
5kW
Electric heating power
3.4m/min
Standard ironing speed
Electric heating icon

Electric
Single- / three-phase versions
Chest heated ironer icon

Chest heated
Commercial rotary ironer
Commercial ironer dimensions icon

1025 × 1395 × 510mm
H × W × D

Electrolux IB42310 Technical Specifications

Specification Electrolux IB42310
Ironer type Electric commercial rotary ironer
Working width 1000 mm
Roller diameter 230 mm
Standard ironing speed 3.4 m/min
Heating source Electric
Electric heating power 5.0 kW
Total connected load 5.2 kW
Maximum water evaporation 5 litres/hour at 20% residual moisture and 100% roller utilisation, ISO 9398
230V single-phase, 50/60Hz 5.2 kW; 32 A
230–240V three-phase, 50/60Hz 5.2 kW; 16 A
400–415V three-phase + neutral, 50Hz 5.2 kW; 10 A
400–440V three-phase, 50/60Hz 5.2 kW; 10 A
Exhaust outlet No outlet specified for IB42310
Airborne sound level 52 dB(A)
Heat emission 3% of installed power
Roller covering Steel wool and cotton felt
Temperature control Adjustable
Linen return Return feed system
Main options Coin meter operation, variable speed control and Nomex padding
Dimensions (H × W × D) 1025 × 1395 × 510 mm
Net weight 120 kg
Shipping volume 0.91 m³

Electrolux IB42310 Controls & Operation

Adjustable temperature, an ergonomic control pedal and finger guard protection support straightforward day-to-day ironing.

Temperature Control

Adjustable Ironing Temperature

Adjust the ironing temperature to suit the linen being processed. The standard ironing speed is 3.4m/min, with variable speed control available as an option.

Control Pedal

Ergonomic Operation

The ergonomic control pedal supports the ironing process while leaving the operator’s hands free to handle and position the linen.

Finger Guard

Operator Protection

Finger guard protection provides an additional safeguard at the feeding area. A bed release lever is also provided on the machine.

Additional Features & Benefits

The Electrolux IB42310 combines practical feeding and return arrangements with adjustable temperature and a choice of optional configurations.

✓
1000mm working width and 230mm roller
✓
5kW electric heating
✓
3.4m/min standard ironing speed
✓
Adjustable ironing temperature
✓
Return feed system
✓
Steel wool and cotton felt roller covering
✓
Ergonomic control pedal
✓
Steel feeding table and reception tray
✓
Finger guard protection
✓
Optional variable speed control

Installation & Laundry Support from Able

Support Beyond the Machine

Buying the Electrolux IB42310 should not be the end of the journey. Able can support your laundry from initial equipment specification through to delivery, installation, commissioning and ongoing machine support.

Ongoing servicing and breakdown support are available to help keep the IB42310 operating reliably throughout its working life.

We can help plan the electrical supply, working clearances, pre-drying process and linen flow before installation.

01

Equipment Specification

We can help confirm whether the IB42310 matches your flatwork, throughput and site requirements.

02

Delivery & Installation

Able can arrange delivery and support the correct positioning and installation of the ironer at your site.

03

Commissioning & Operator Setup

We can support commissioning and operator guidance, helping your team set ironing speed and temperature for daily use.

04

Servicing & Breakdown Support

Ongoing servicing and breakdown support are available to help keep your commercial laundry equipment supported.

Buy Outright or Choose Complete360°

Choose the purchasing route that works best for your laundry, whether you want to own the Electrolux IB42310 outright or bring equipment and ongoing support together into one managed solution.

OPTION 01

Purchase Outright

Purchase the Electrolux IB42310 as a standalone professional chest-heated ironer, with Able available to support equipment specification, delivery, installation, commissioning and ongoing servicing.

OPTION 02

Able Complete360°

For organisations looking to avoid a large upfront equipment cost, the IB42310 can form part of an Able Complete360° laundry solution, bringing equipment, installation, commissioning, servicing, maintenance and ongoing support together into one fixed monthly cost.

Electrolux IB42310 Spec Sheet

Electrolux IB42310 commercial rotary ironer
PRODUCT TECHNICAL DOCUMENT

Download the Electrolux IB42310 Spec Sheet

View the Electrolux Professional specification sheet for roller dimensions, heating power, electrical connections, installation dimensions and available options.

Speak to Able about matching the IB42310 to your flat linen, electrical supply and laundry layout.

Request an Electrolux IB42310 Quote

Tell us about your flat linen, daily workload, pre-drying arrangements and available space, and we’ll help you assess the Electrolux IB42310 for your laundry.

Ask about electrical supply options, optional controls, outright purchase or Able Complete360°, installation and ongoing servicing.

Request an Electrolux IB42310 Quote
